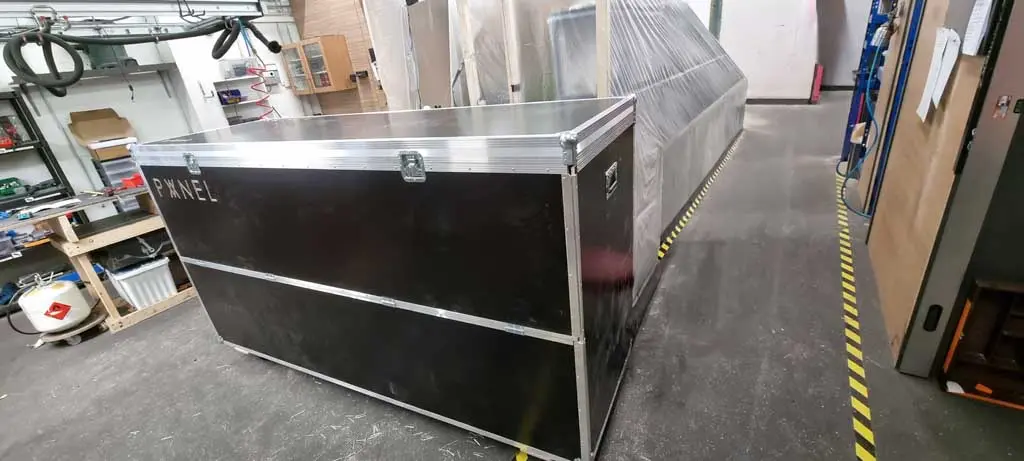

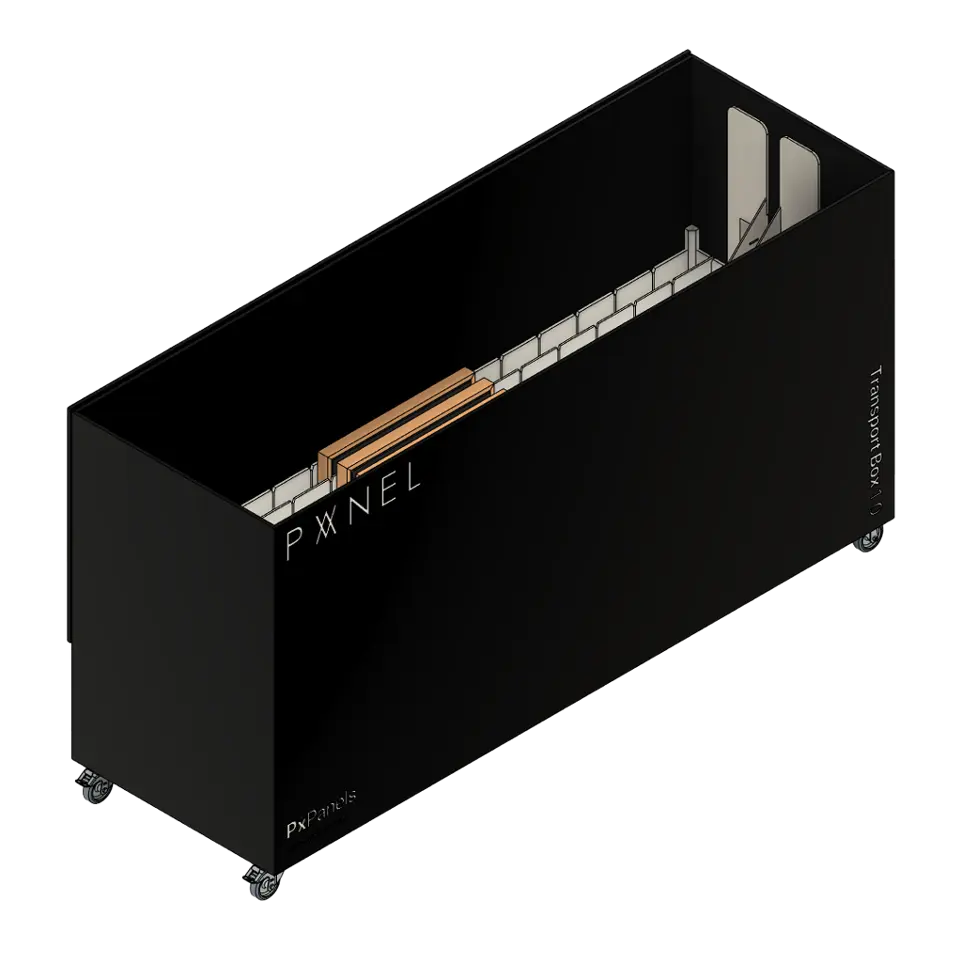

Panel Box 1.0
High quality transport case for Panel modules
Panel Box 1.0
High quality transport case
for Panel modules

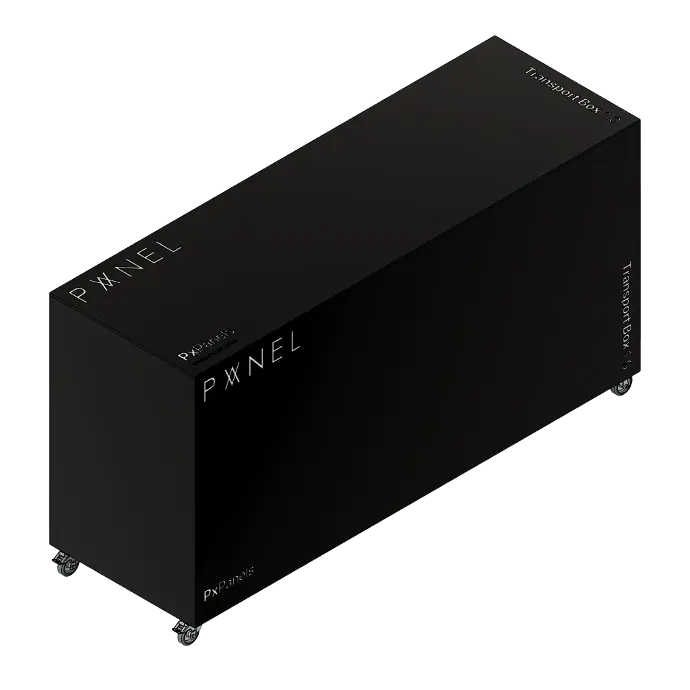

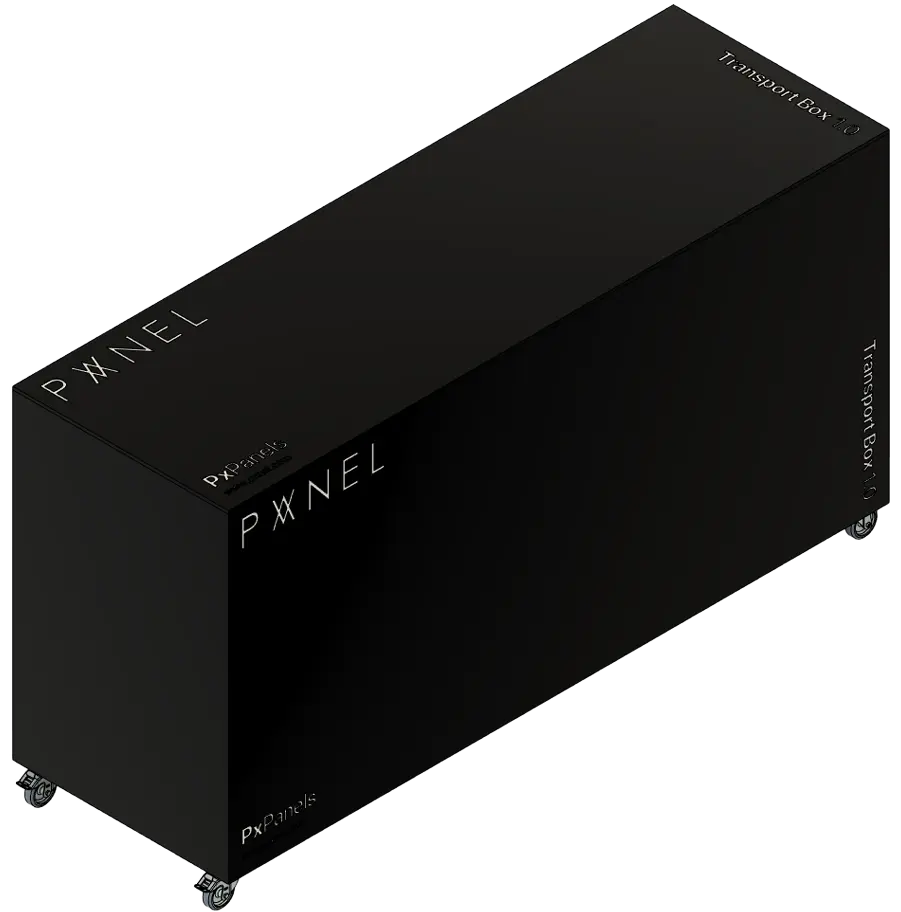

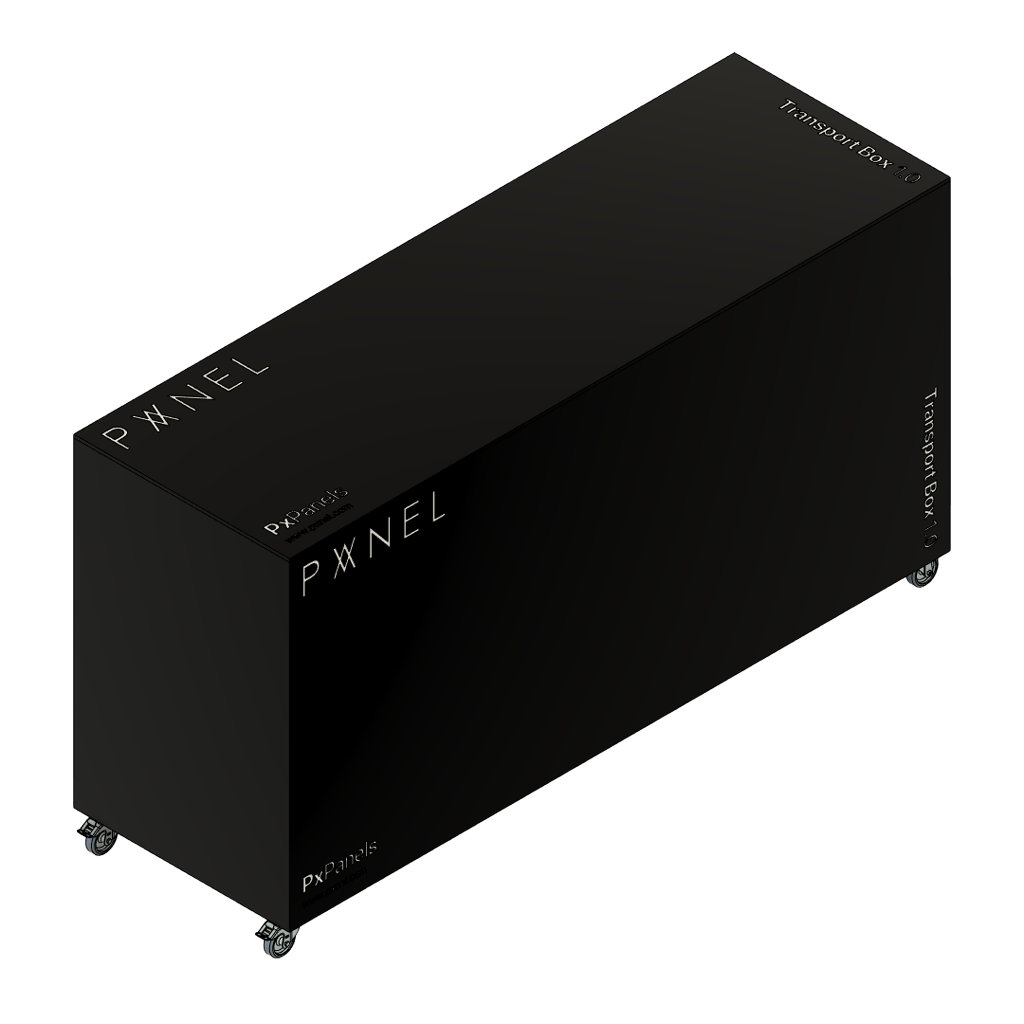

Prespective View

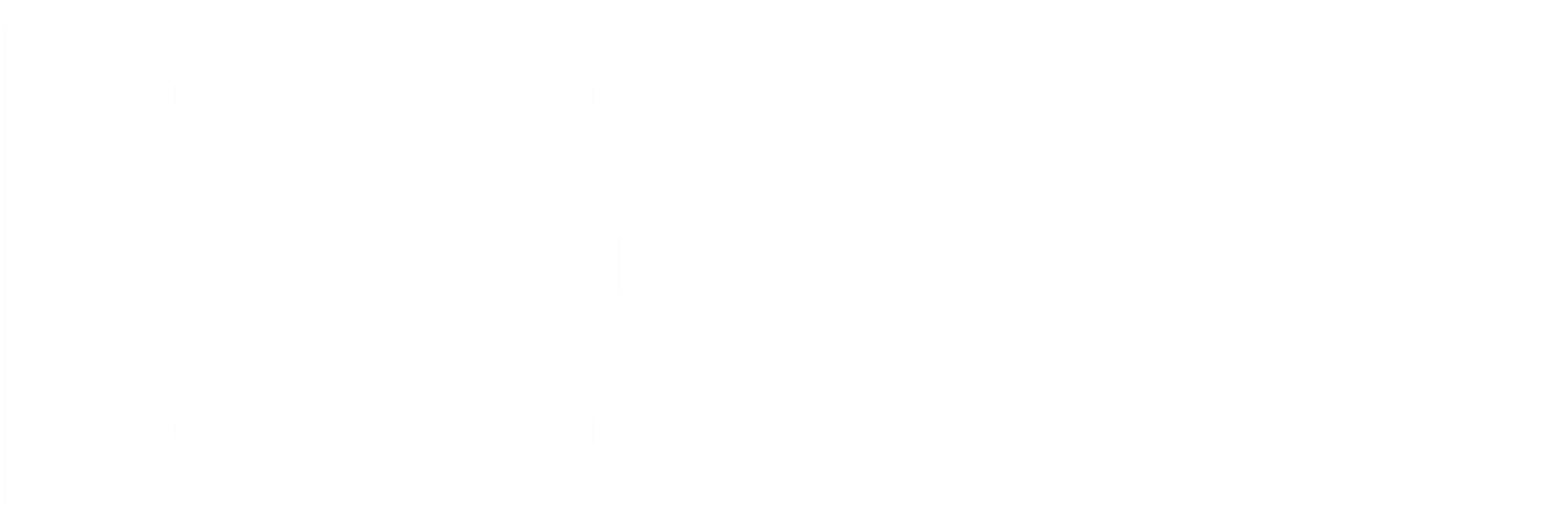

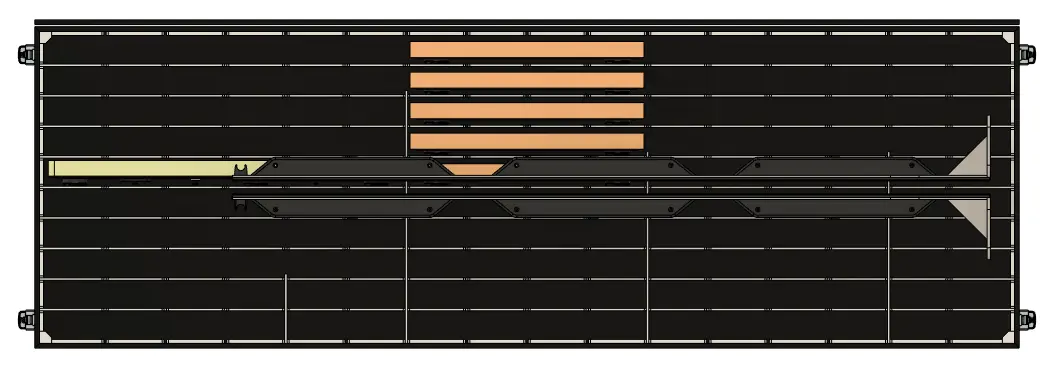

Top View
Prespective View
Top View
Technical Diagrams
Optimized to EURO PALLET Dimension norms
Panel Box 01
250 x 80 cm (Length x Width)
145 cm (Height)
Stacking
Dimensions

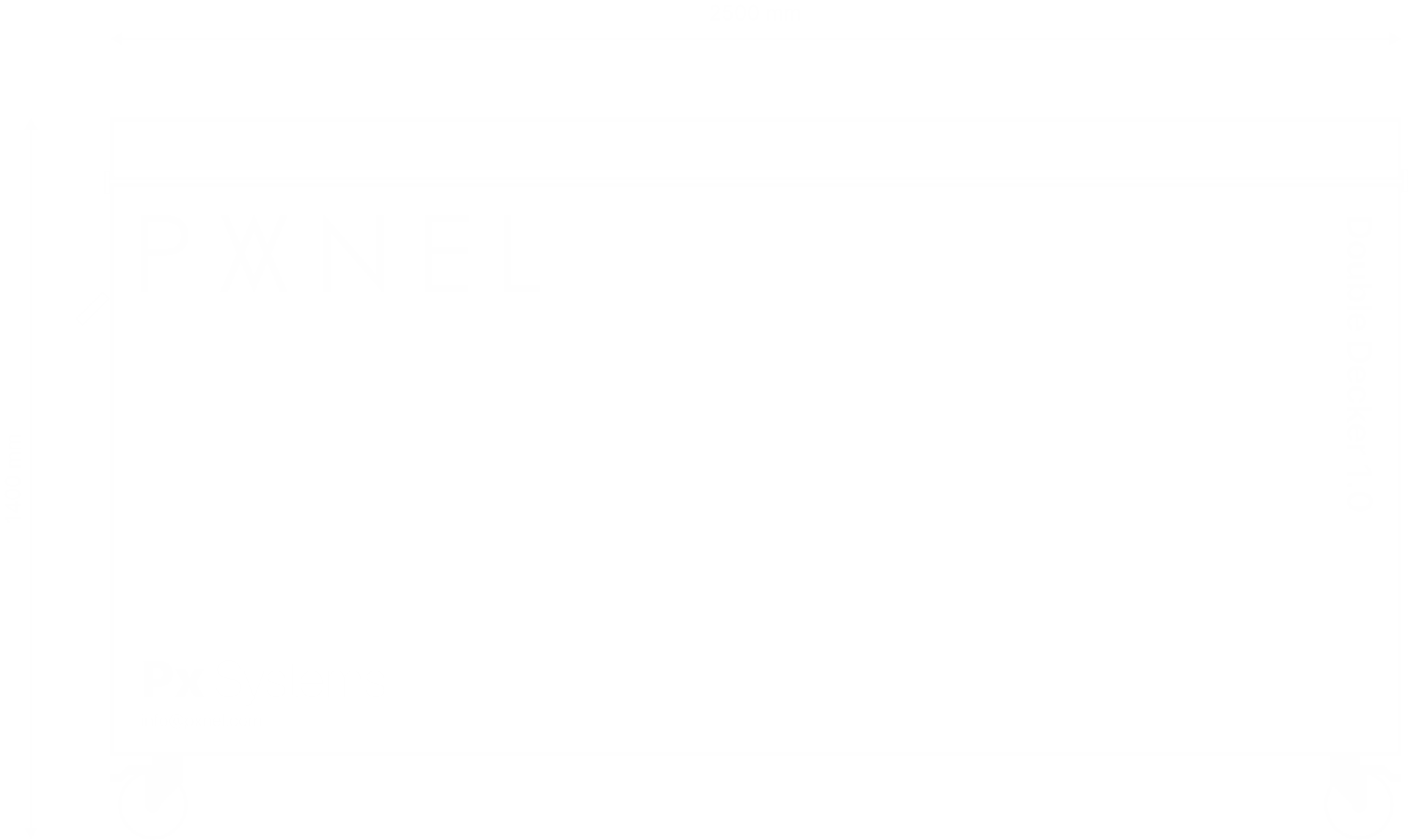

Side View Dimensions
Top View Dimensions
Technical Diagrams
Optimized to Euro-Pallet
Dimension norms
Panel Box 01
250 x 80 cm (Length x Width)
145 cm (Height)
Dimensions
Side View Dimensions
Top View Dimensions
Product Info.
Maximum Panel Capacity, Capable of holding large panels.
The Panel-Box is the largest model in the Px-Box Version 01 collection, meticulously designed for the secure storage and transport of panels. It combines robust construction with thoughtful features to ensure your panels remain in pristine condition.
Key Features:
Specialized: Created specifically for panels, the Panel-Box offers exceptional protection and stability during both storage and transport.
Protective Interior: The interior is lined with carpet material, providing a soft surface for the edges of the panels, preventing scratches and damage.
Adjustable Compartments: The box is divided into multiple compartments that can be adjusted both vertically and horizontally. This flexibility ensures a snug fit for panels of various sizes, minimizing movement during transport.
Versatile Capacity: Capable of storing a wide range of panel sizes, from the smallest 0101 panel (15x15 cm) to the largest 0816 panel (120x250 cm).
The Panel-Box is the ultimate solution for safely storing and transporting your panels, ensuring they arrive at their destination in perfect condition.
The PXNEL system accepts panels larger than 250 cm in length and 120 cm in width (i.e. 0816 panel), but will require a customized transport box for it.
Technical Product Details for Transport Case
Material:
- Body: 9mm birch plywood board
- Finish: Sturdy, high-quality, waterproof laminated surface
Dimensions:
- Exterior Dimensions: 250 x 80 x 145 cm (Length x Width x Height)
- Interior Dimensions: 245 x 75 x 140 cm (Length x Width x Height)
Hardware:
- Castor Wheels: 360, High-quality, lockable castor wheels
- Hinges: 90-degree stay-hinges for stationary lid-open state
- Locks: 2x butterfly locks for strong locking mechanism
- Edge Protection: High-quality aluminum edge profiles
- Corner Protection: Metallic ball corners for premium protection
Additional Features:
- Lid Pockets: Equipped with pockets on the top of the box lid for stackability
Design:
- Color/Finish Options: Matt black
- Weight Capacity: 400 KG
- Total Empty Weight: 75 KG
This list provides a comprehensive overview of the technical details for the transport case, covering all key aspects such as materials, dimensions, hardware, and additional features.
Product Info.
Maximum Panel Capacity, Capable of holding large panels.
The Panel-Box is the largest model in the Px-Box Version 01 collection, meticulously designed for the secure storage and transport of panels. It combines robust construction with thoughtful features to ensure your panels remain in pristine condition.
Key Features:
Specialized: Created specifically for panels, the Panel-Box offers exceptional protection and stability during both storage and transport.
Protective Interior: The interior is lined with carpet material, providing a soft surface for the edges of the panels, preventing scratches and damage.
Adjustable Compartments: The box is divided into multiple compartments that can be adjusted both vertically and horizontally. This flexibility ensures a snug fit for panels of various sizes, minimizing movement during transport.
Versatile Capacity: Capable of storing a wide range of panel sizes, from the smallest 0101 panel (15x15 cm) to the largest 0816 panel (120x250 cm).
The Panel-Box is the ultimate solution for safely storing and transporting your panels, ensuring they arrive at their destination in perfect condition.
The PXNEL system accepts panels larger than 250 cm in length and 120 cm in width (i.e. 0816 panel), but will require a customized transport box for it.
Technical Details
Panel-Box
Material:
- Body: 9mm birch plywood board
- Finish: Sturdy, high-quality, waterproof laminated surface
Dimensions:
- Exterior Dimensions:
- 250 x 80 x 145 cm (Length x Width x Height)
- Interior Dimensions:
- 245 x 75 x 140 cm (Length x Width x Height)
Hardware:
- Castor Wheels: 360, High-quality, lockable castor wheels
- Hinges: 90-degree stay-hinges for stationary lid-open state
- Locks: 2x butterfly locks for strong locking mechanism
- Edge Protection: High-quality aluminum edge profiles
- Corner Protection: Metallic ball corners for premium protection
Additional Features:
- Lid Pockets: Equipped with pockets on the top of the box lid for stackability
Design:
- Color/Finish Options: Matt black
- Weight Capacity: 400 KG
- Total Empty Weight: 75 KG
This list provides a comprehensive overview of the technical details for the transport case, covering all key aspects such as materials, dimensions, hardware, and additional features.
Single-Decker Gallery
Single-Decker Gallery

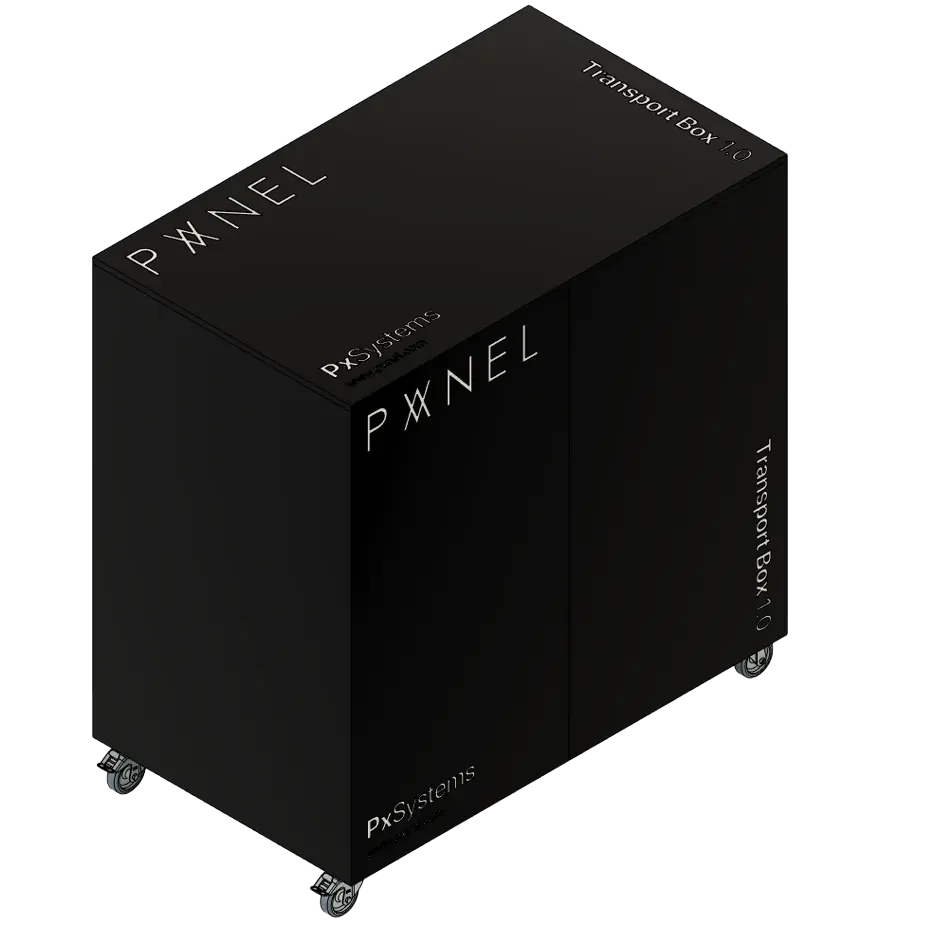

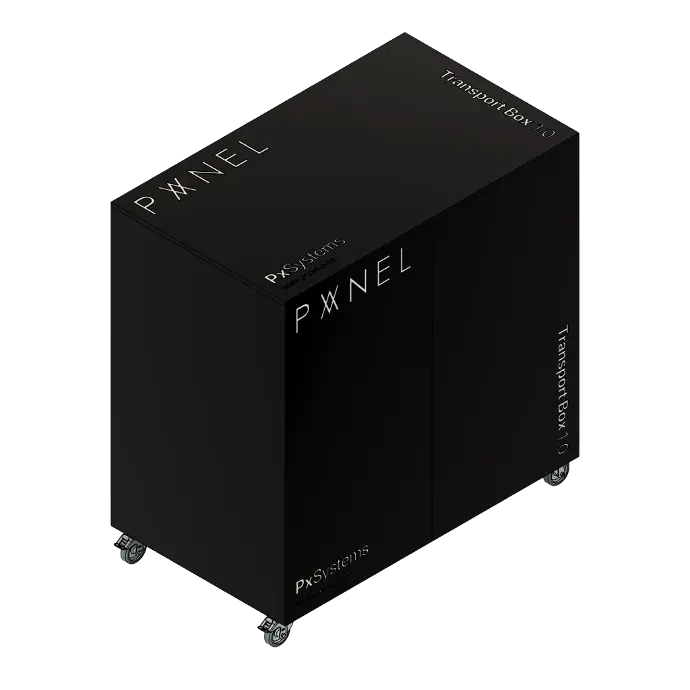

Double Decker 1.0
High quality transport case for PxBlock modules

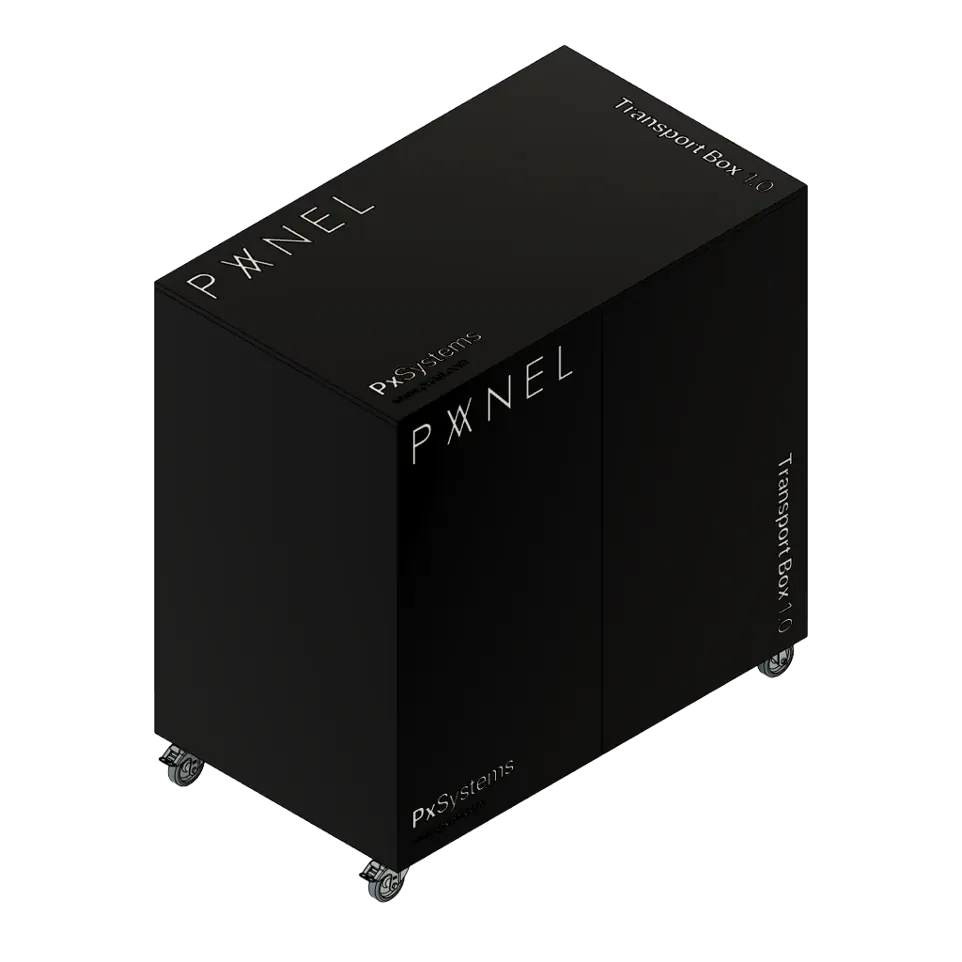

Double Decker 1.0
High quality transport case
for PxBlock modules

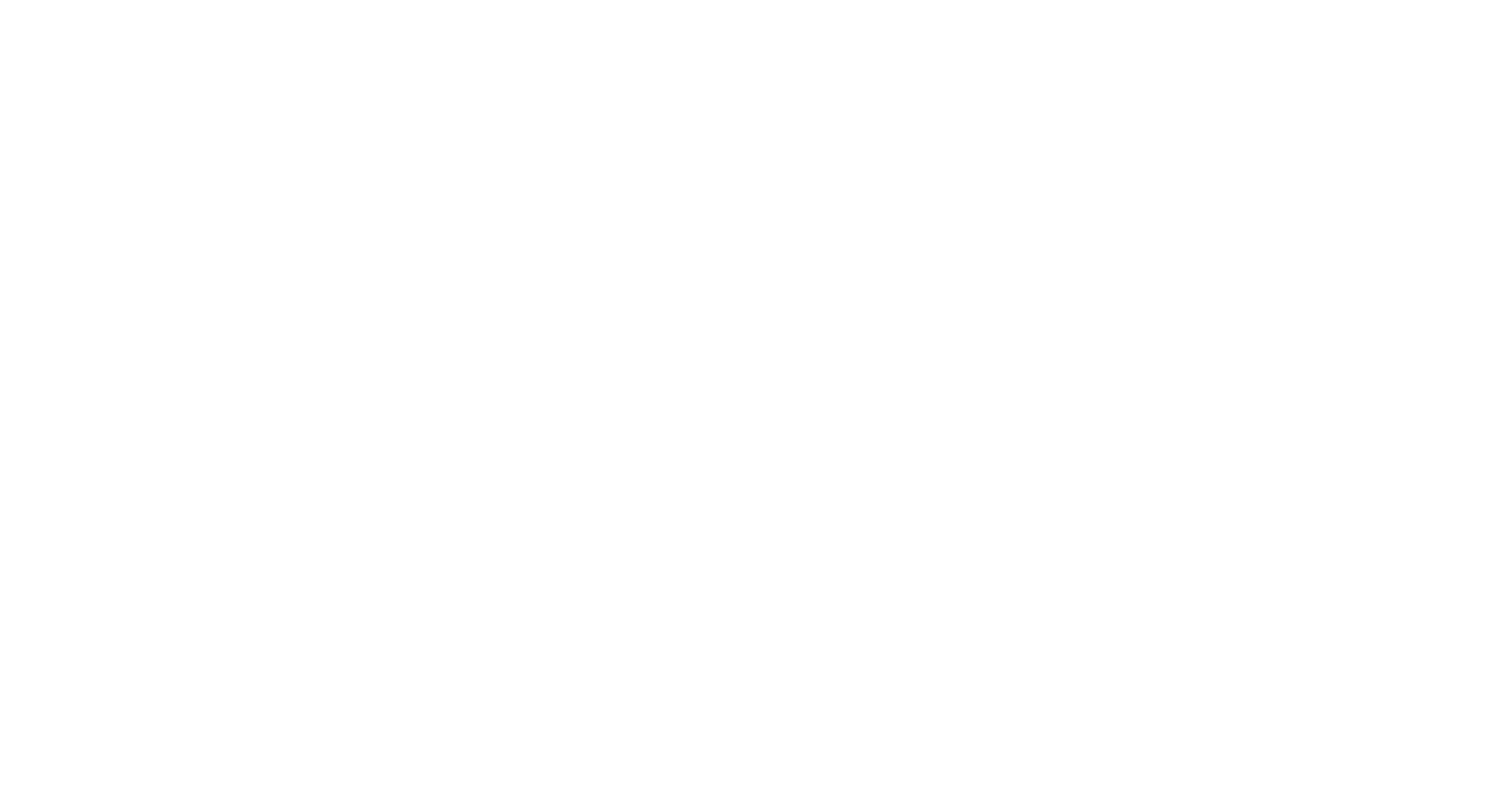

Side View

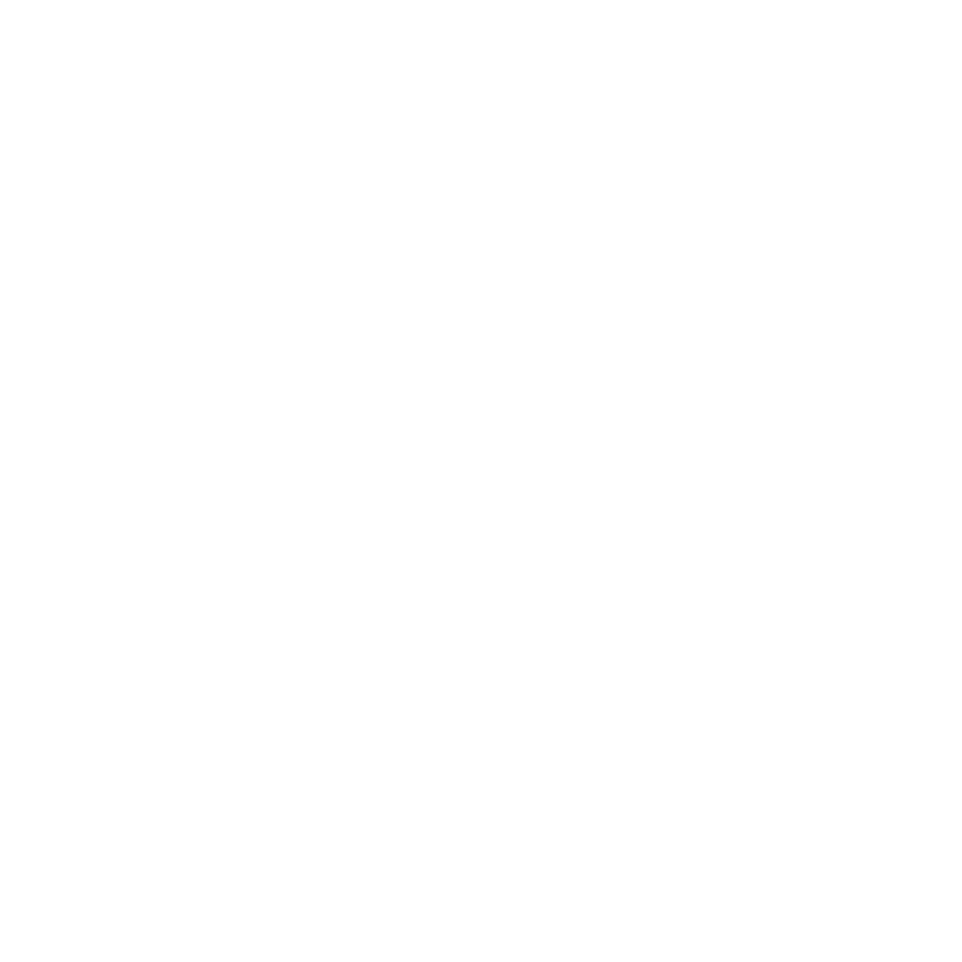

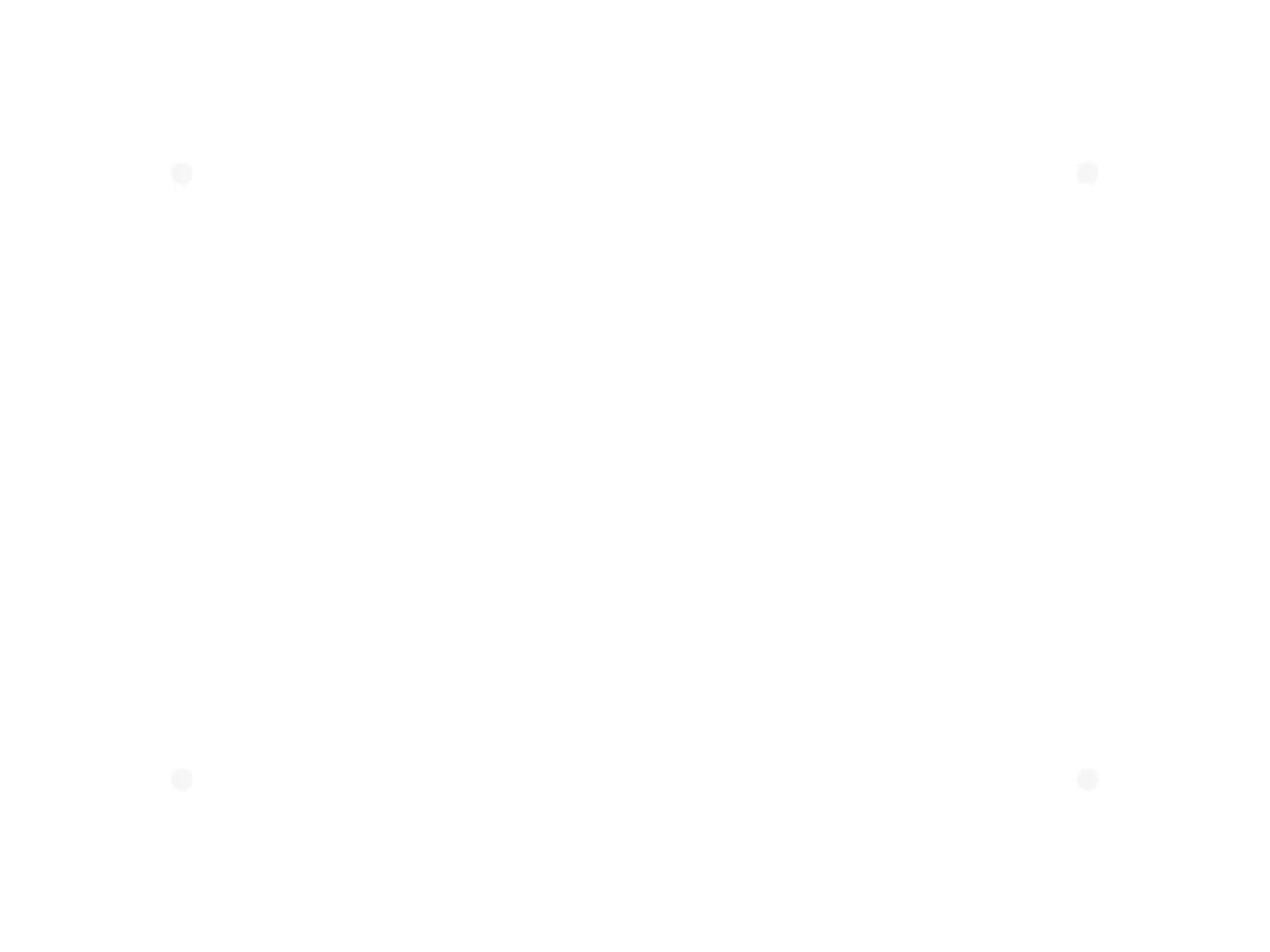

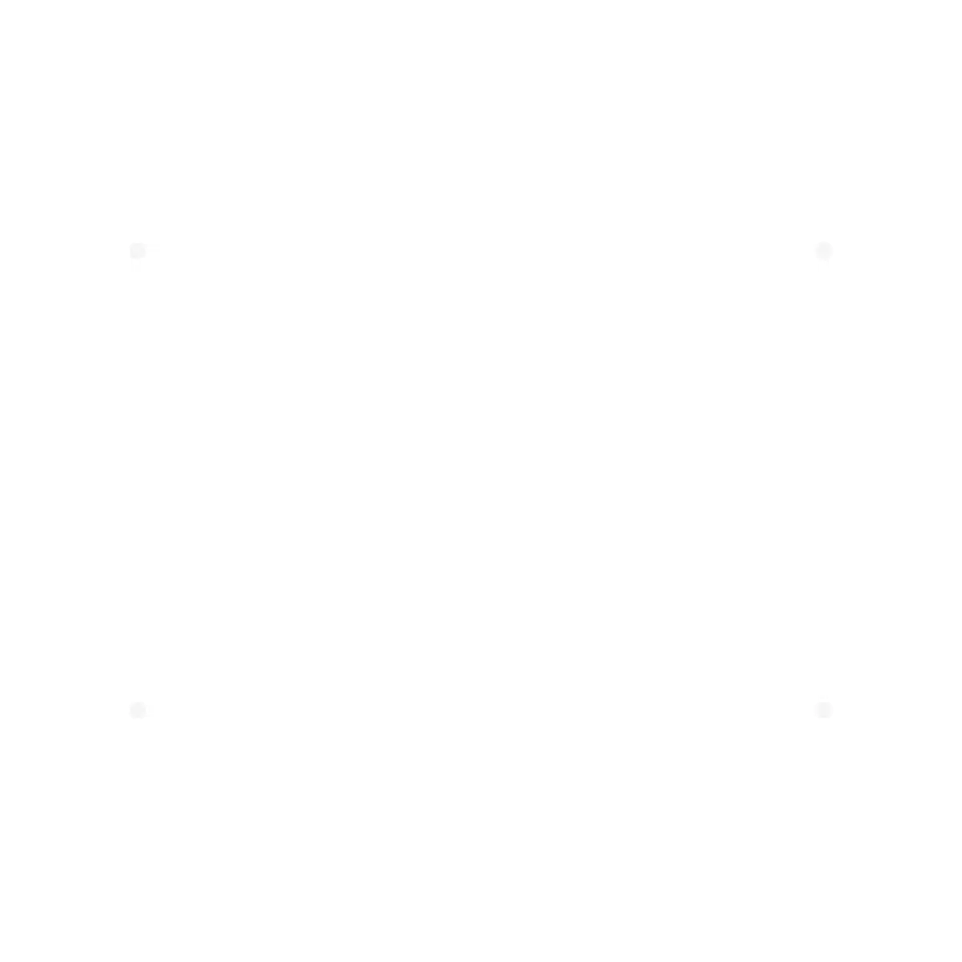

Top View

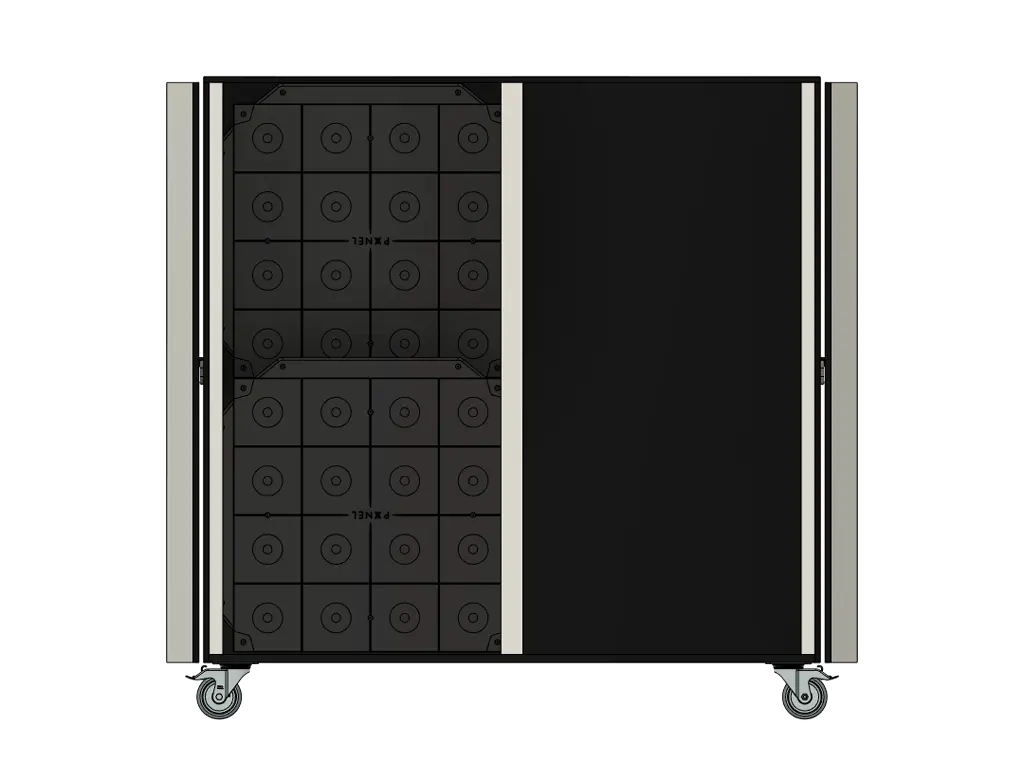

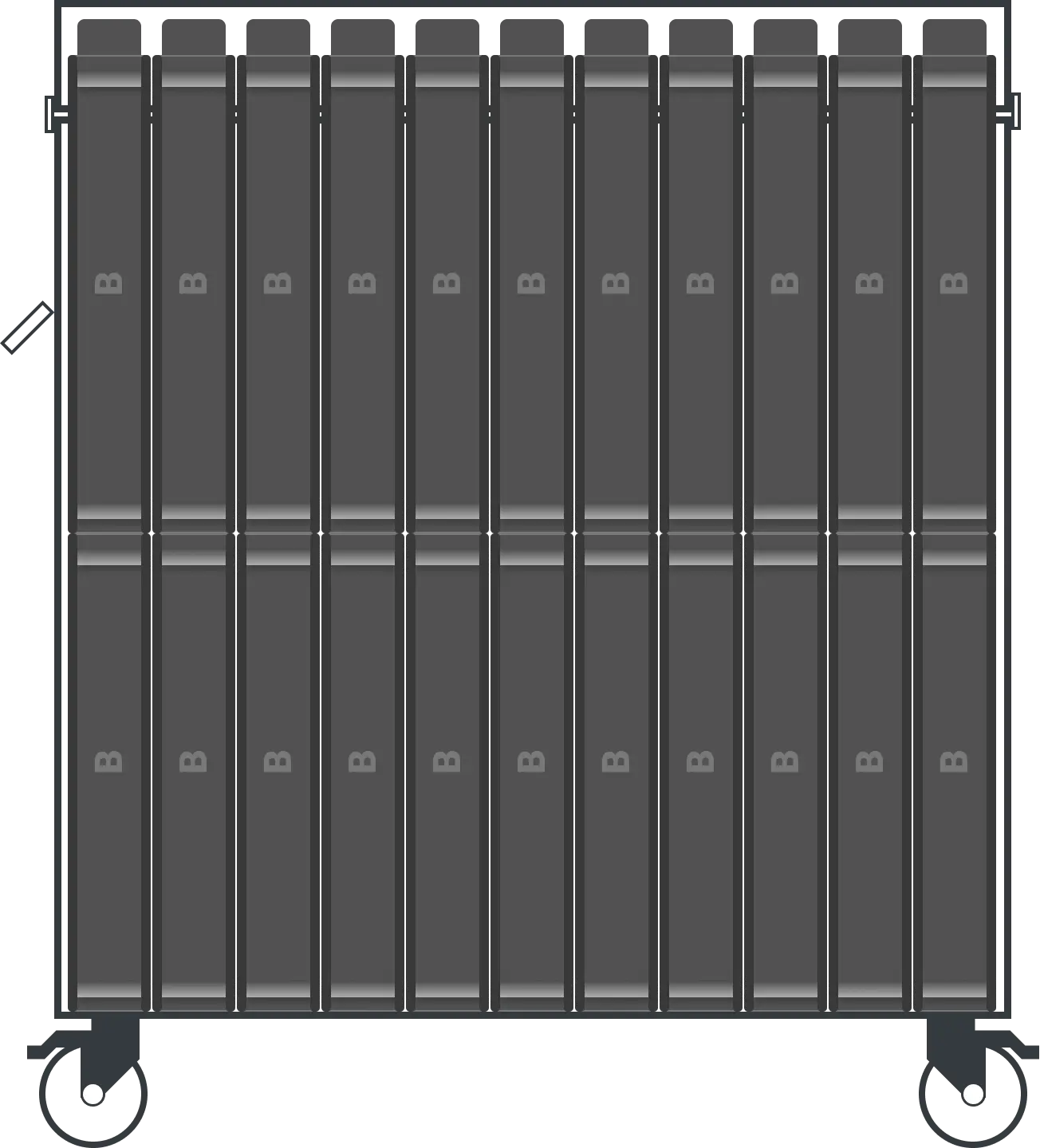

X-Ray Side-View

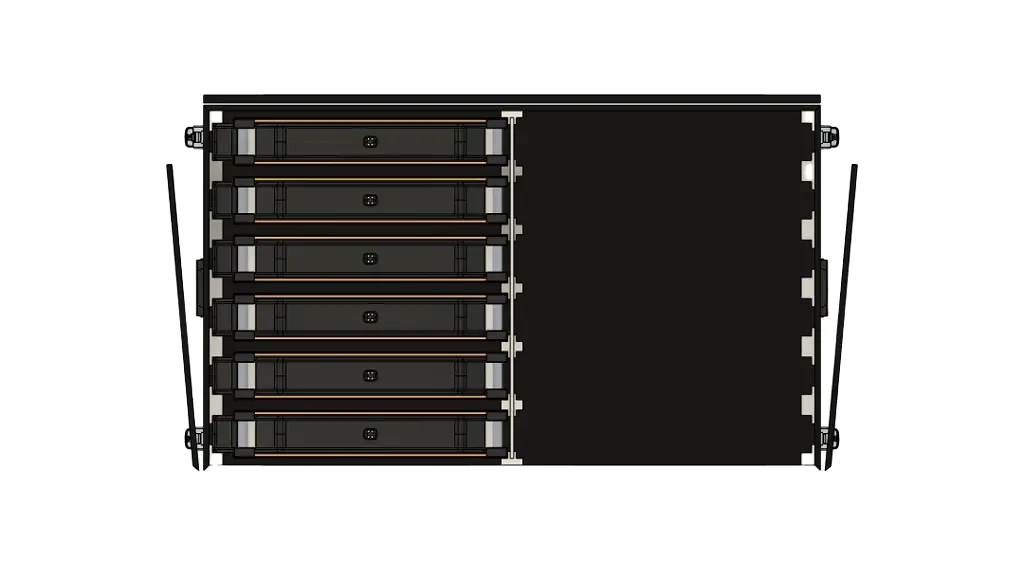

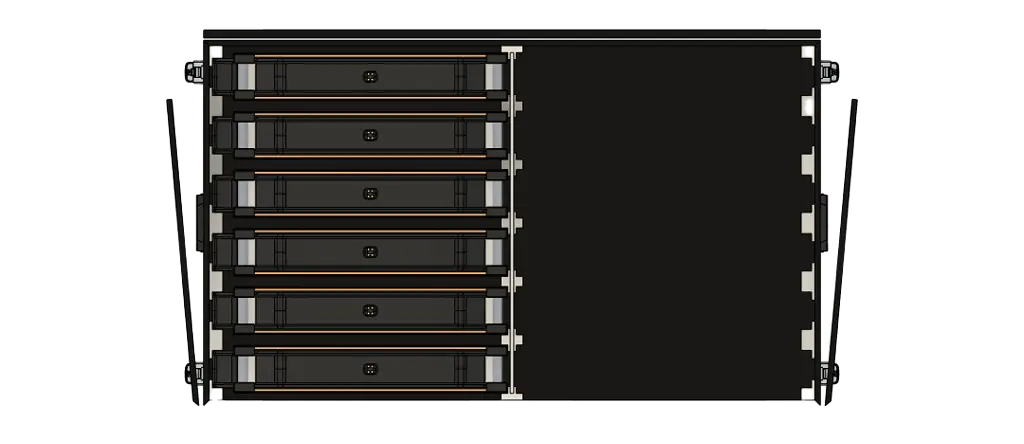

X-Ray Top-View
Top View

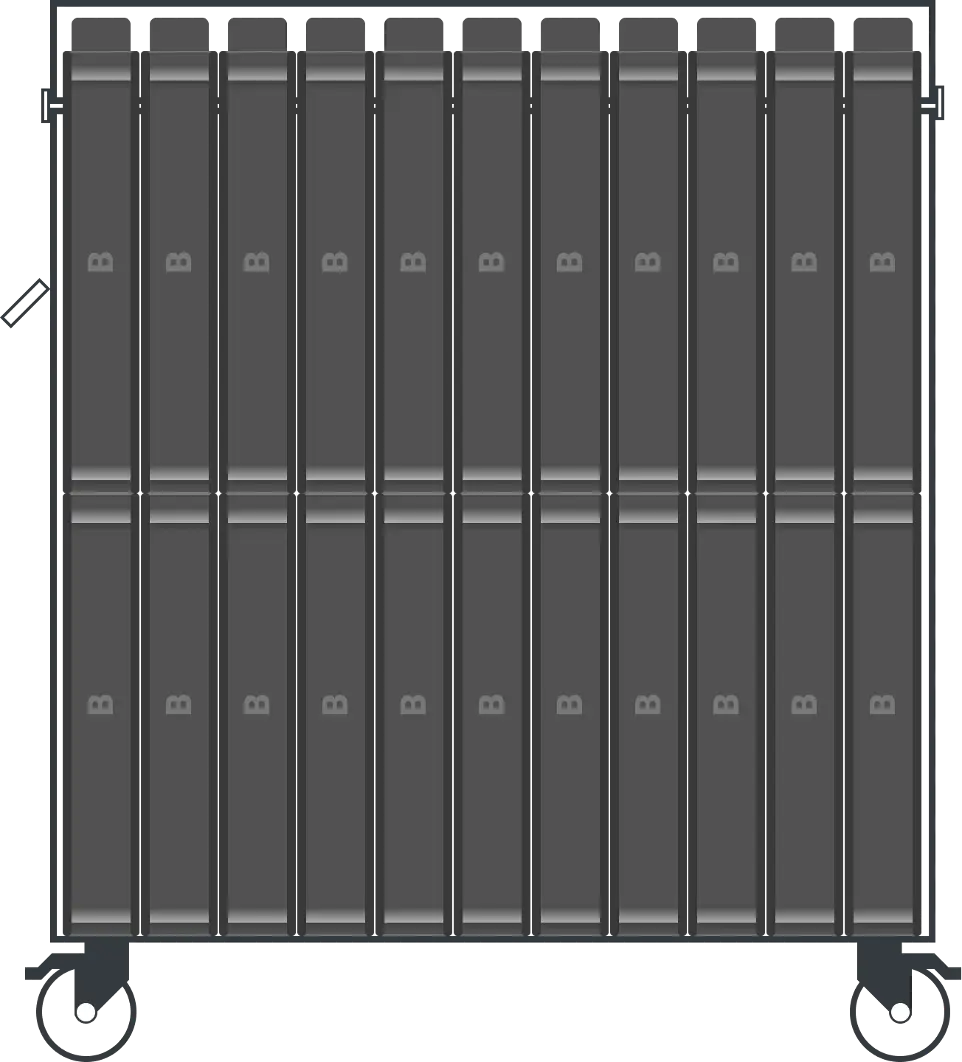

X-Ray Side-View

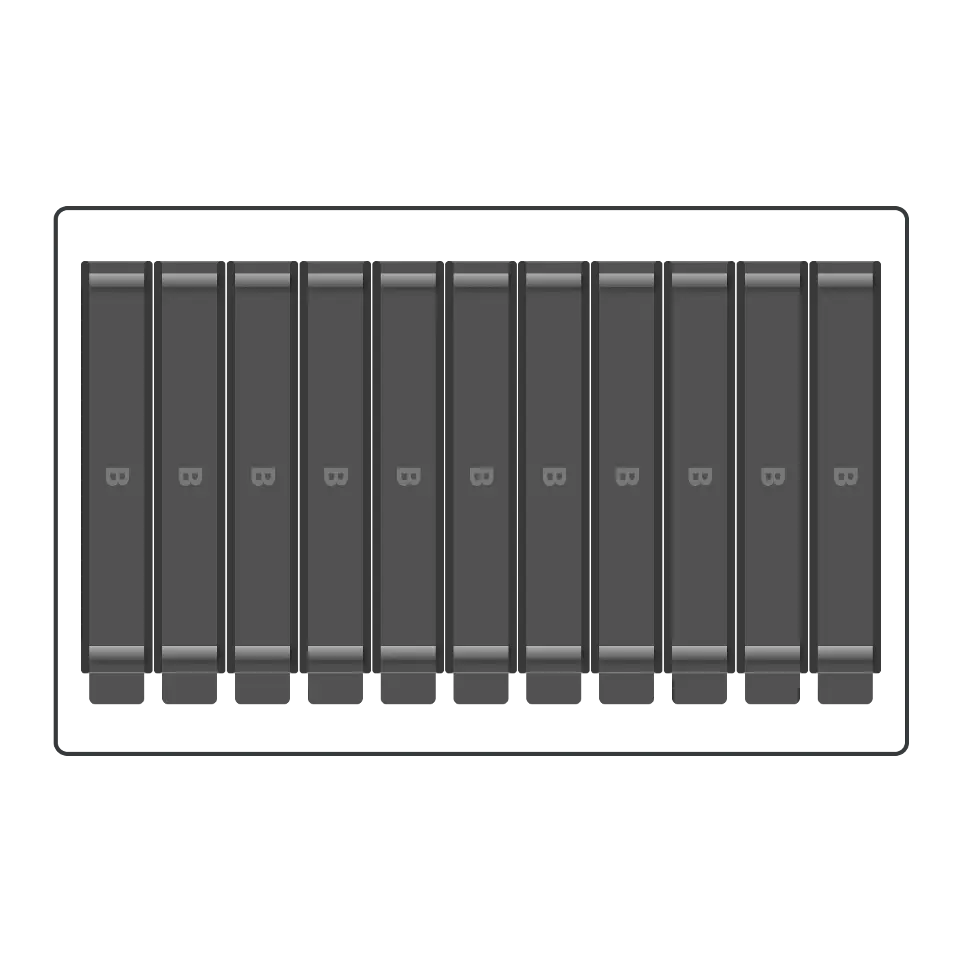

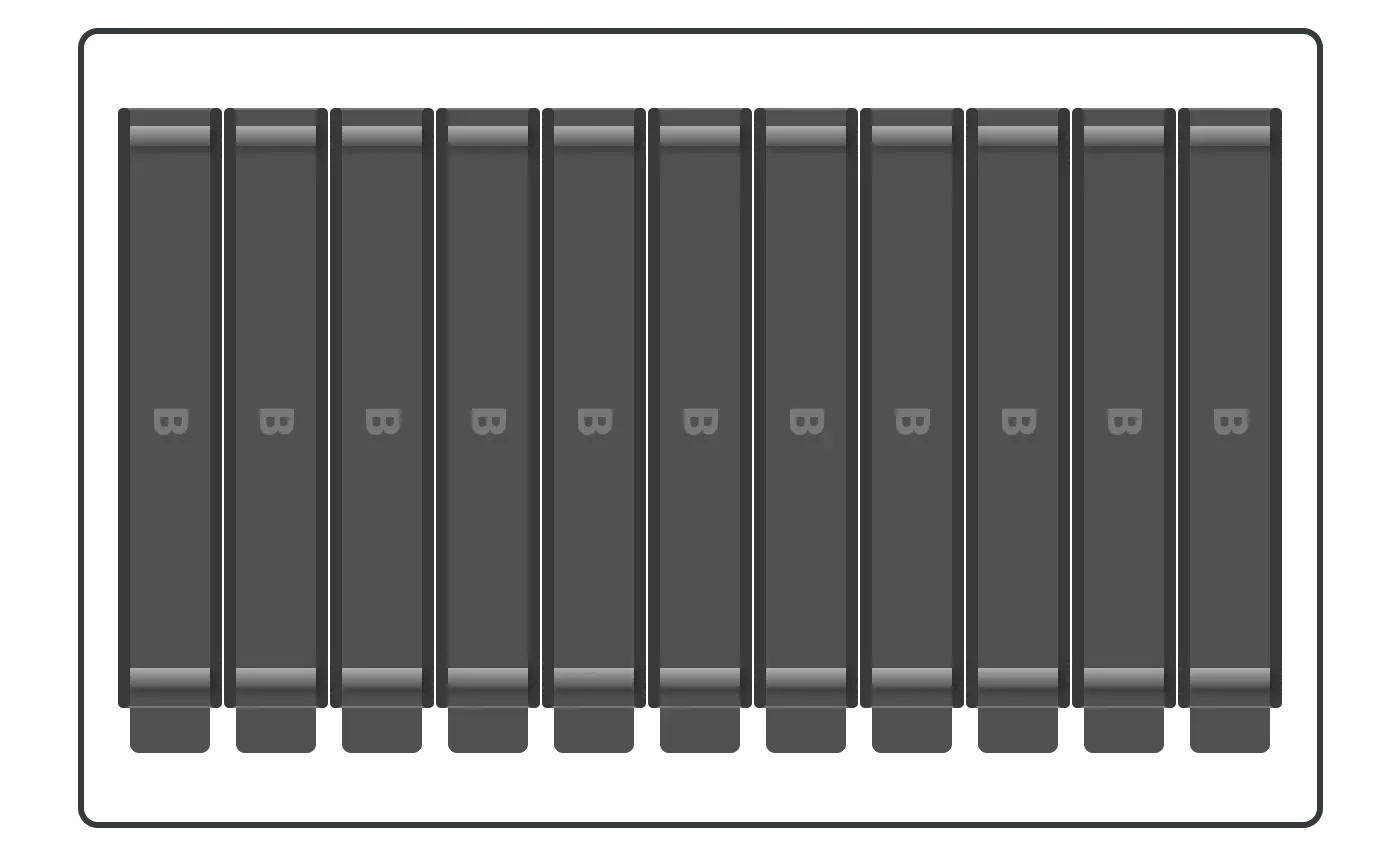

X-Ray Top-View
120 x 80 cm (Length x Width)
75 cm (Height)
\
Stacking
Technical Diagrams
Optimized to follow Euro-Pallet dimensional norms to optimize stacking, storage and transport.
Top View Dimensions
Side View Dimensions
Dimensions
Double Decker
120 x 80 cm (Length x Width)75 cm (Height)
Technical Diagrams
Optimized to follow Euro-Pallet dimensional norms to optimize stacking,
storage and transport.
Top View Dimensions
Side View Dimensions
Dimensions
Product Info.
Maximum Capacity, Superior Efficiency
The Double-Decker PxBox is the second-largest transport box in the PxBox collection, doubling the height and volume of the Single-Decker with a total height of 130cm. Adhering to euro pallet (Length x Width) standards, this spacious box features high-quality, smooth-rolling wheels for effortless mobility and is forklift-friendly for seamless handling. Its stackable design further enhances storage efficiency.
Engineered to hold the maximum number of Px-Block modules, the Double-Decker PxBox is the ultimate solution for your modular transport needs. Please note, it is not intended for storing or transporting panels.
Technical Product Details for Transport Case
Material:
- Body: 9mm birch plywood board
- Finish: Sturdy, high-quality, waterproof laminated surface
Dimensions:
- Exterior Dimensions: 80 x 120 x 145 cm
- Interior Dimensions: 68 x 115 x 130 cm
Hardware:
- Castor Wheels: 360, High-quality, lockable castor wheels
- Hinges: 90-degree stay-hinges for stationary lid-open state
- Locks: 2x butterfly locks for strong locking mechanism
- Edge Protection: High-quality aluminum edge profiles
- Corner Protection: Metallic ball corners for premium protection
Additional Features:
- Lid Pockets: Equipped with pockets on the top of the box lid for stackability
Design:
- Color/Finish Options: Matt black
- Weight Capacity: 250 KG
- Total Empty Weight: 50 KG
This list provides a comprehensive overview of the technical details for the transport case, covering all key aspects such as materials, dimensions, hardware, and additional features.
Product Info.
Maximum Capacity, Superior Efficiency
The Double-Decker PxBox is the second-largest transport box in the PxBox collection, doubling the height and volume of the Single-Decker with a total height of 130cm. Adhering to euro pallet (Length x Width) standards, this spacious box features high-quality, smooth-rolling wheels for effortless mobility and is forklift-friendly for seamless handling. Its stackable design further enhances storage efficiency.
Engineered to hold the maximum number of Px-Block modules, the Double-Decker PxBox is the ultimate solution for your modular transport needs. Please note, it is not intended for storing or transporting panels.
Technical Details
for Double Decker Transport Case
Material:
- Body: 9mm birch plywood board
- Finish: Sturdy, high-quality, waterproof laminated surface
Dimensions:
- Exterior Dimensions:
- 80 x 120 x 145cm
- Interior Dimensions:
- 68 x 115 x 130 cm
Hardware:
- Castor Wheels: 360, High-quality, lockable castor wheels
- Hinges: 90-degree stay-hinges for stationary lid-open state
- Locks: 2x butterfly locks for strong locking mechanism
- Edge Protection: High-quality aluminum edge profiles
- Corner Protection: Metallic ball corners for premium protection
Additional Features:
- Lid Pockets: Equipped with pockets on the top of the box lid for stackability
Design:
- Color/Finish Options: Matt black
- Weight Capacity: 250 KG
- Total Empty Weight: 50 KG
This list provides a comprehensive overview of the technical details for the transport case, covering all key aspects such as materials, dimensions, hardware, and additional features.
Single-Decker Gallery

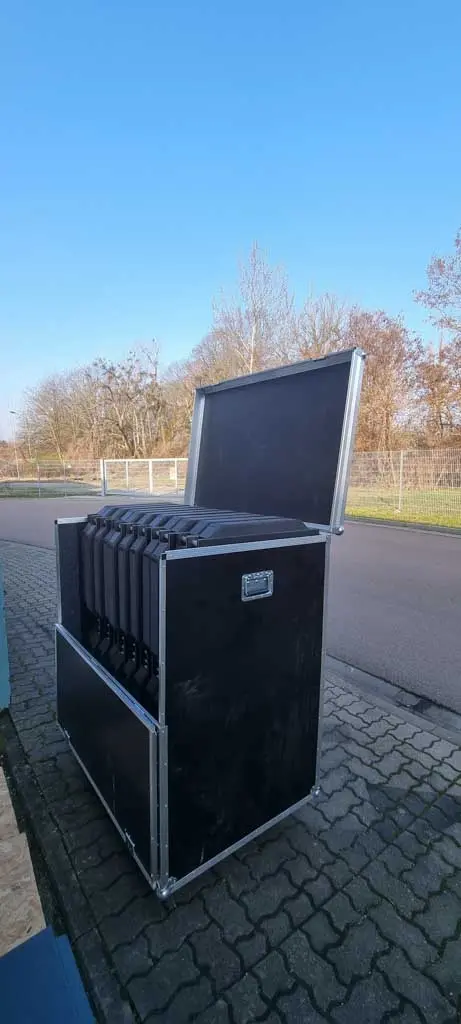

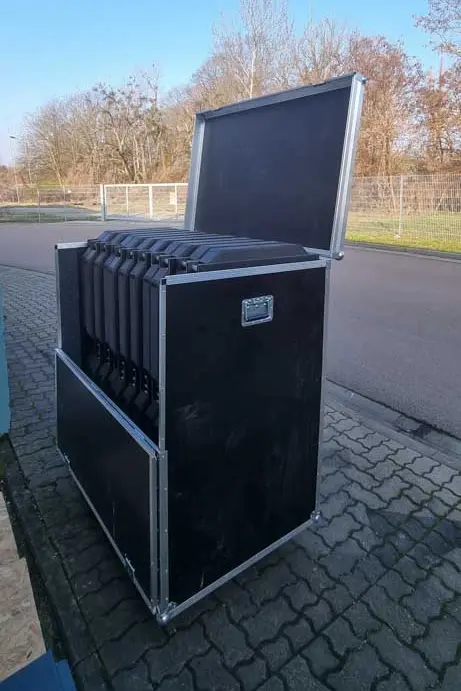

Double-Decker Gallery
Simply Comfortable
while packing and un-packing
Simply Comfortable
while packing and un-packing
Everything just fits.
Fits Perfectly

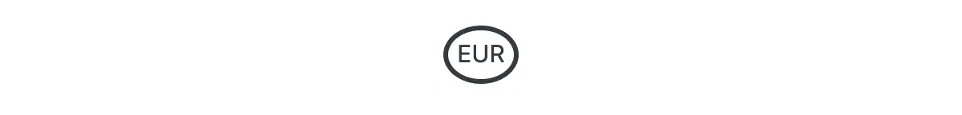

Px Box

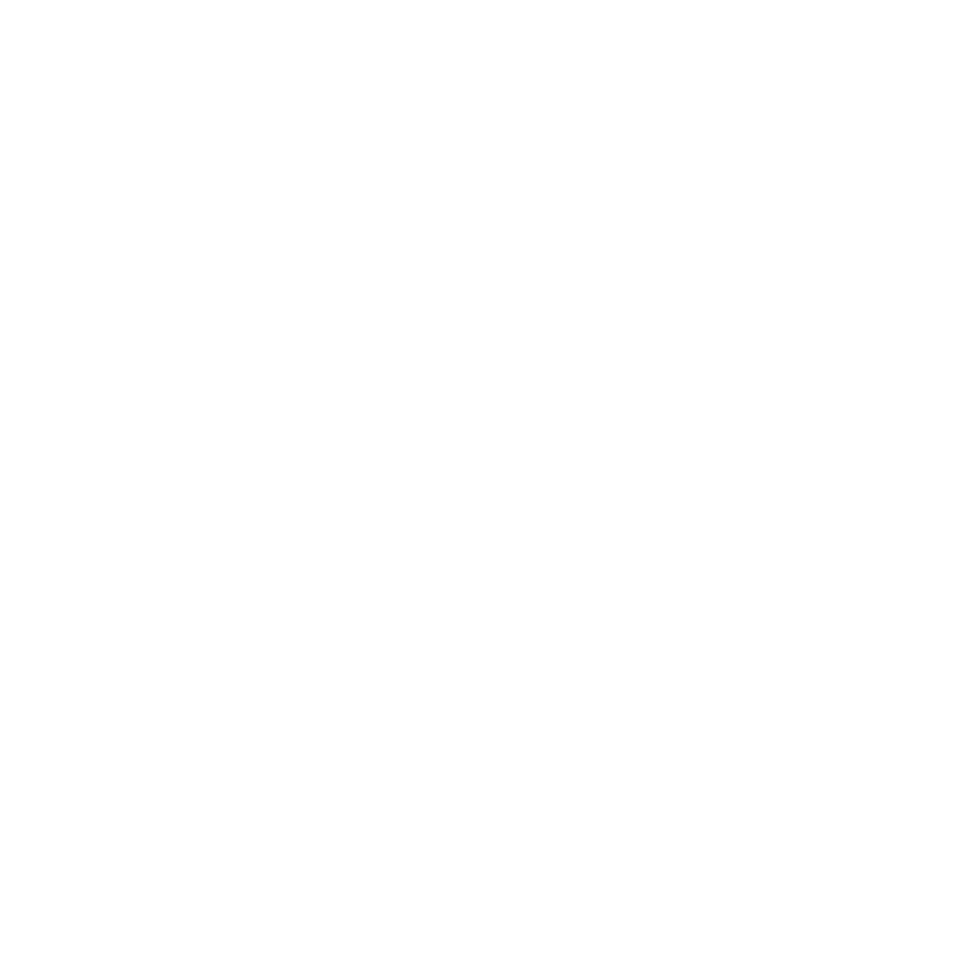

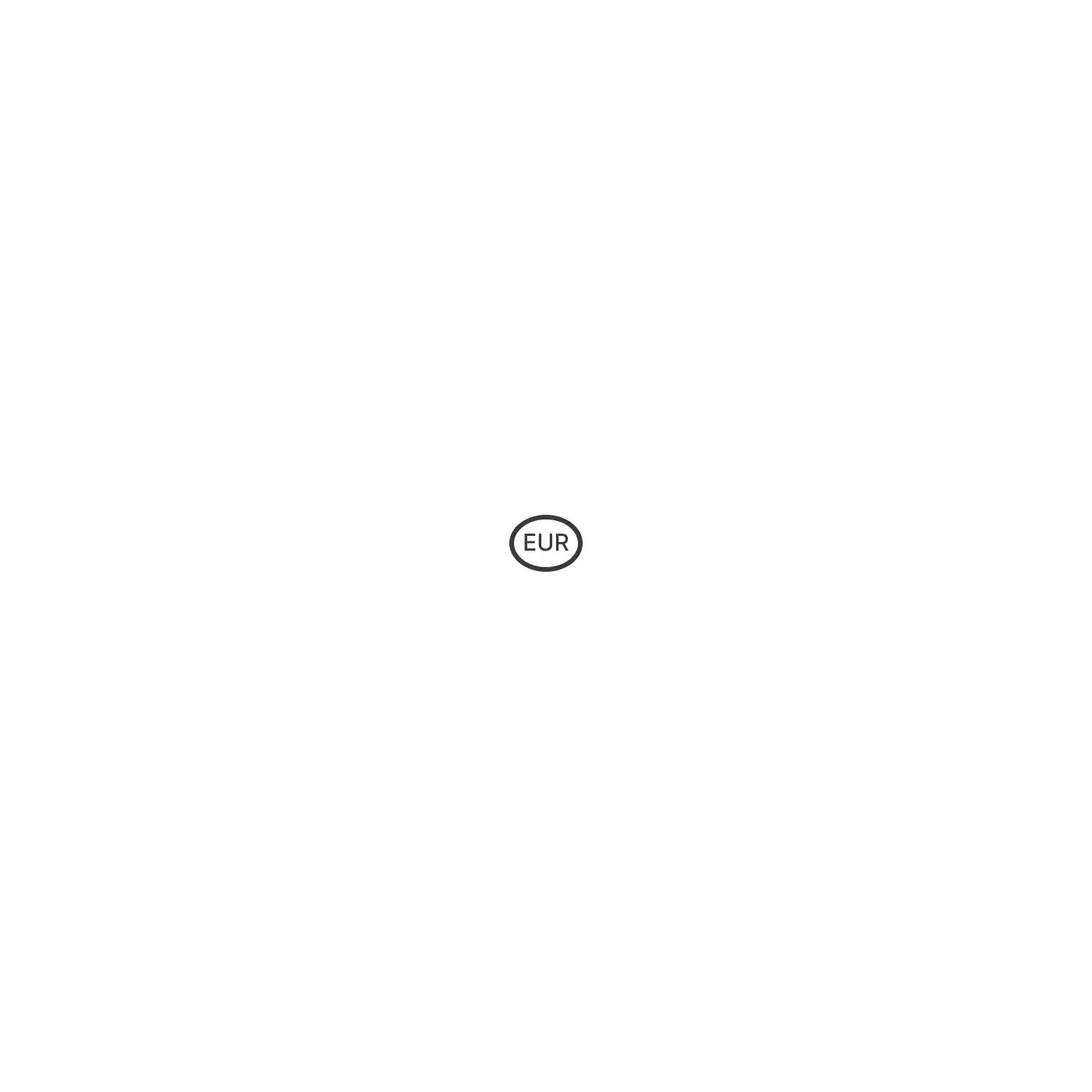

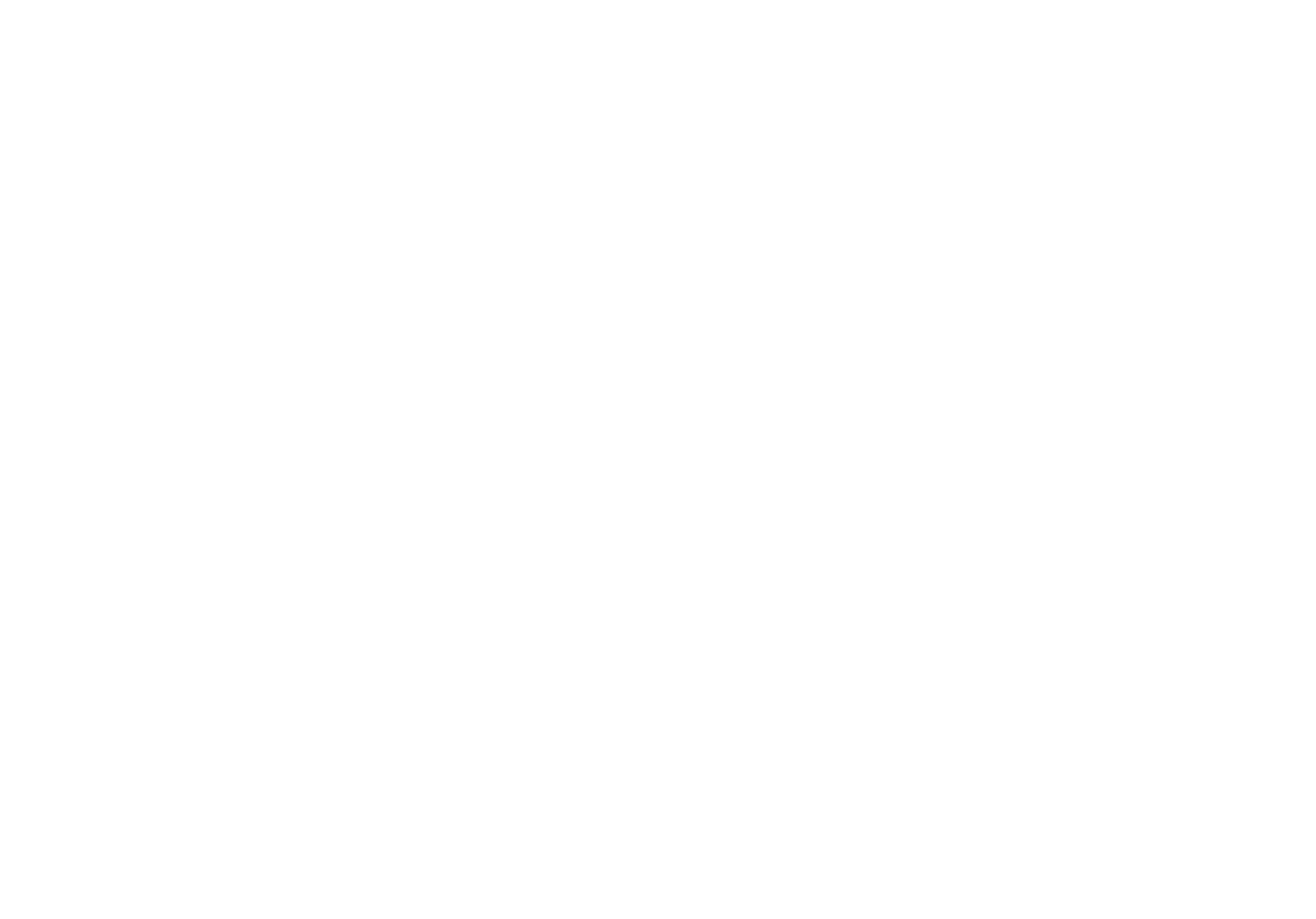

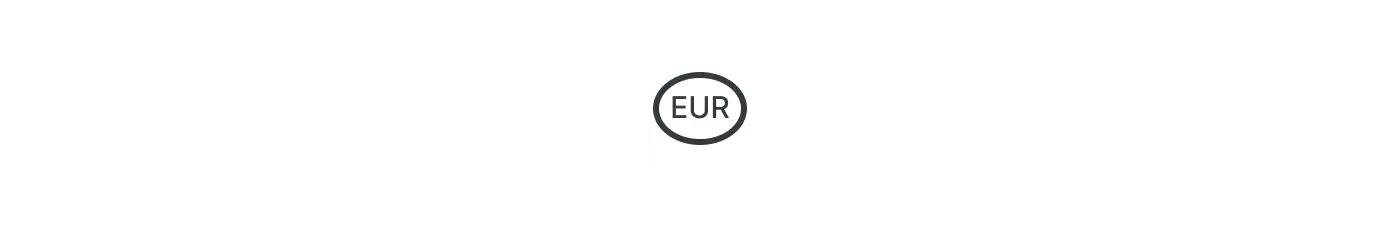

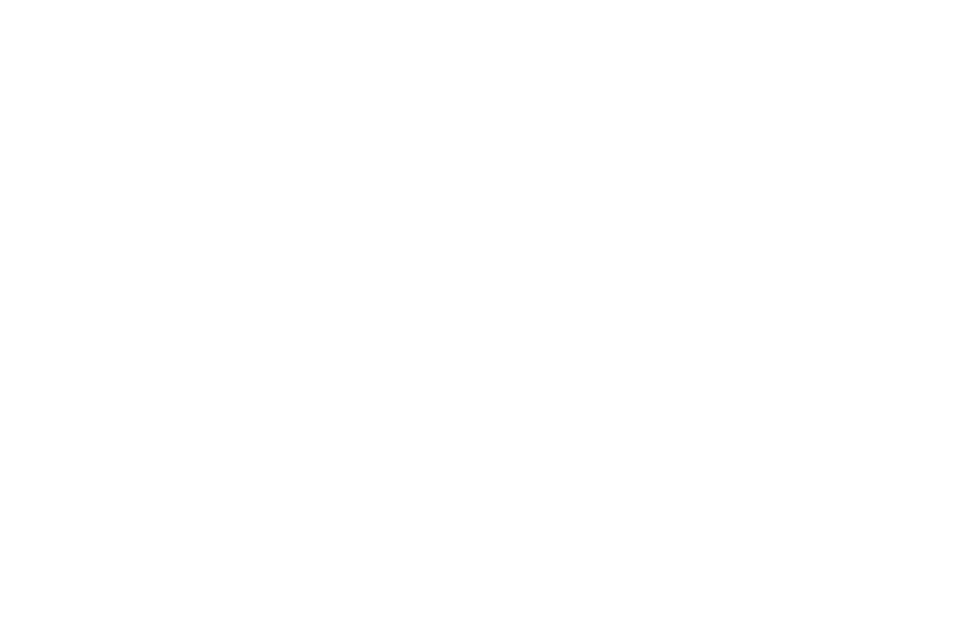

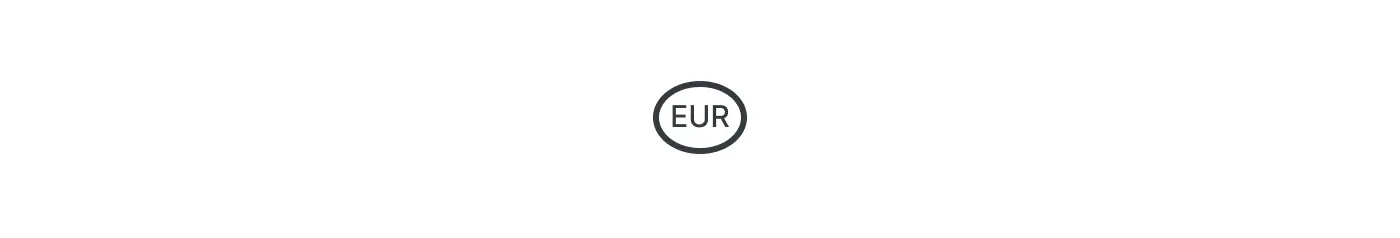

Euro Pallet Size
Length x Width: 800 x 1200 mm
Height: 650 mm
Px Box
Euro Pallet Size
Length x Width: 800 x 1200 mm
Height: 650 mm

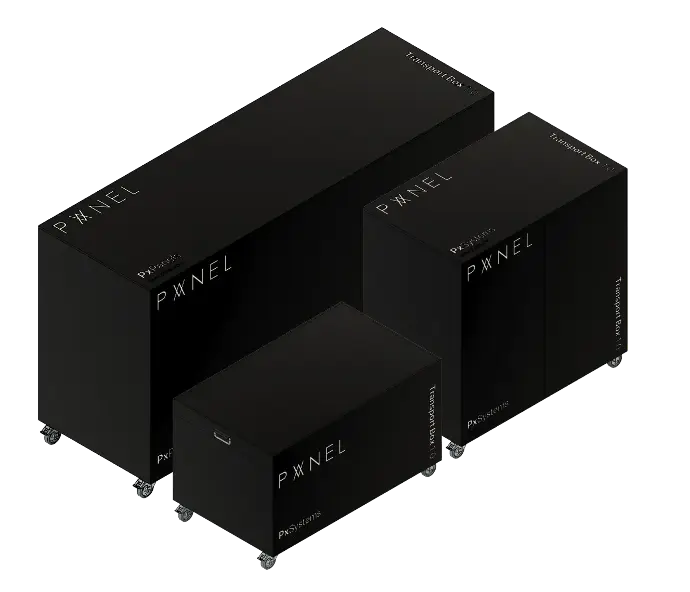

Variants
Variants

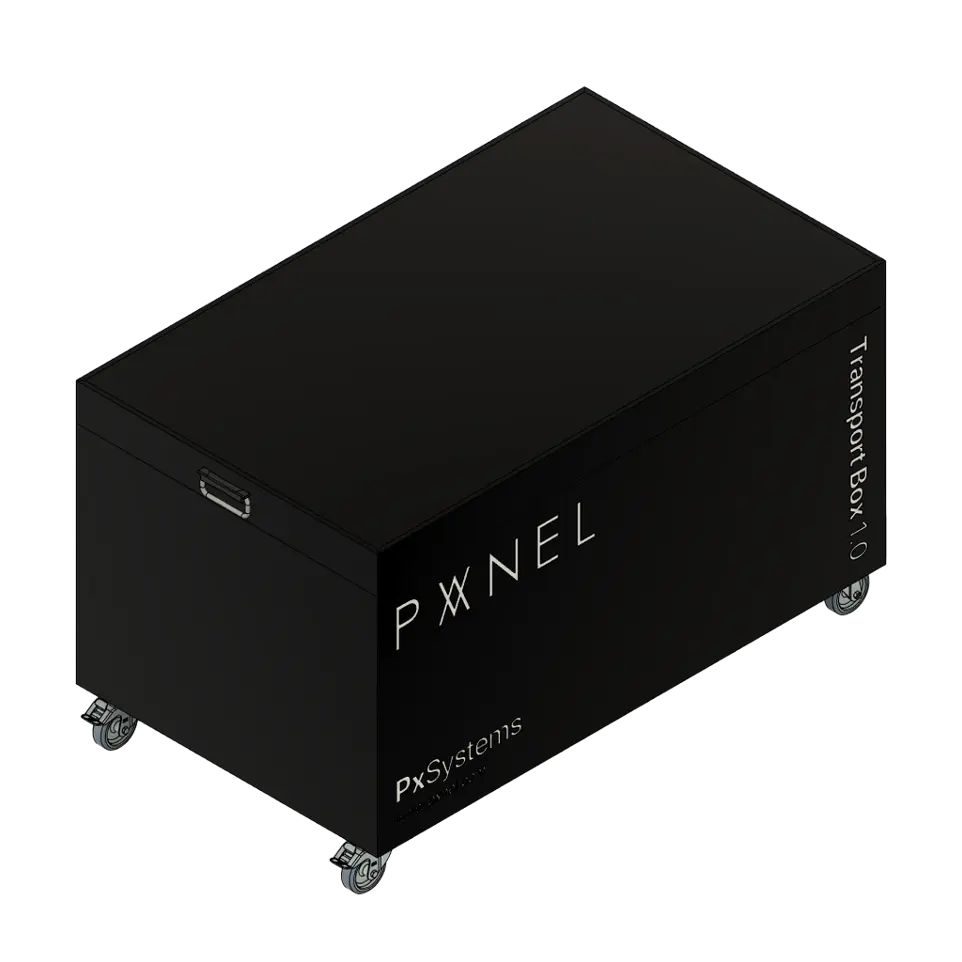

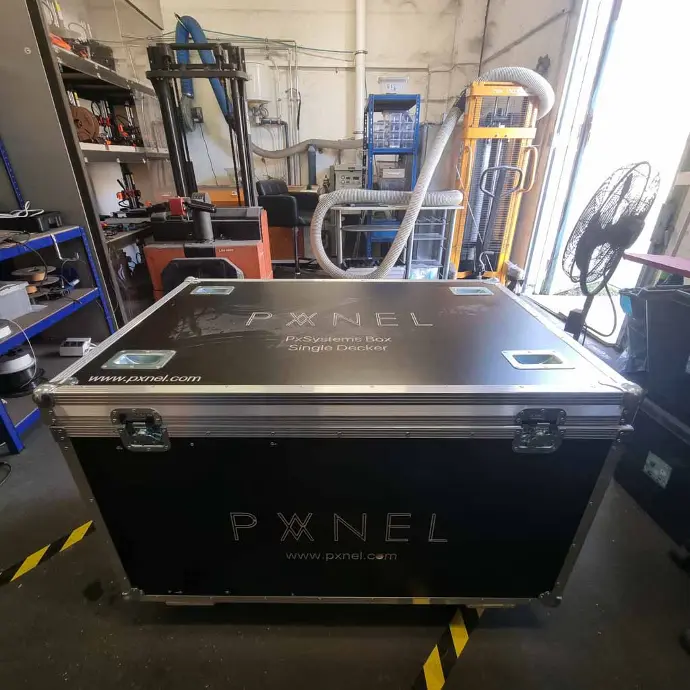

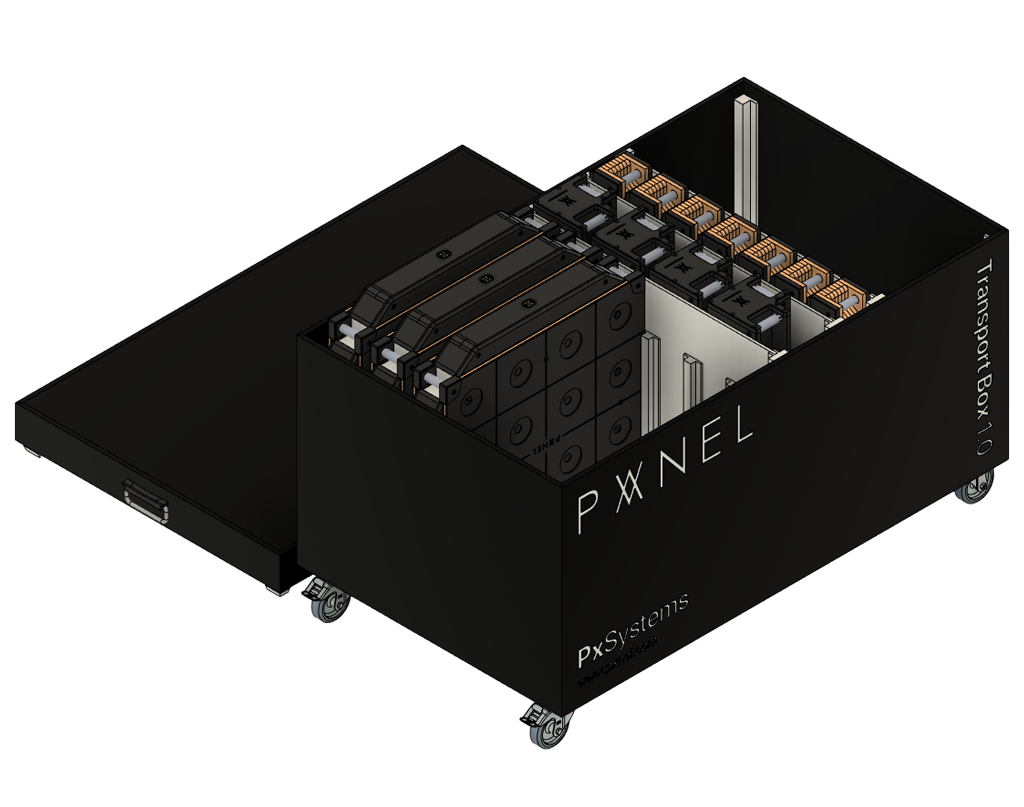

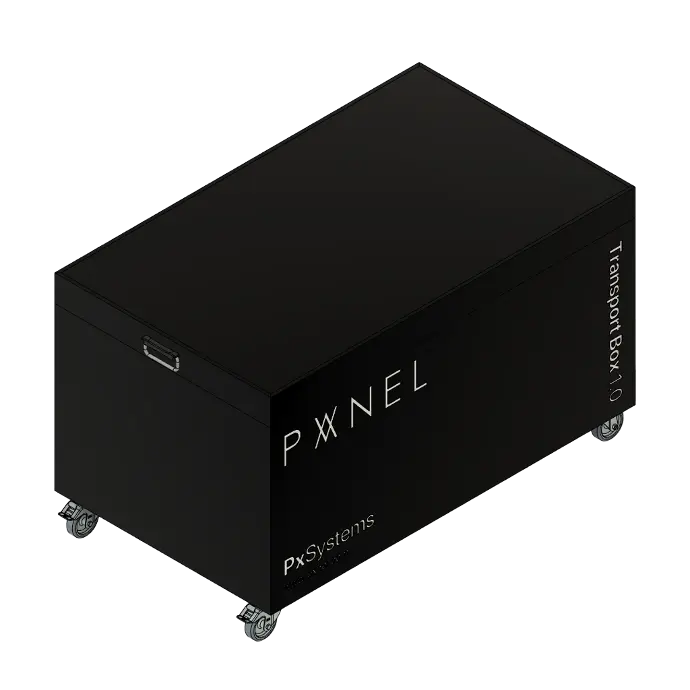

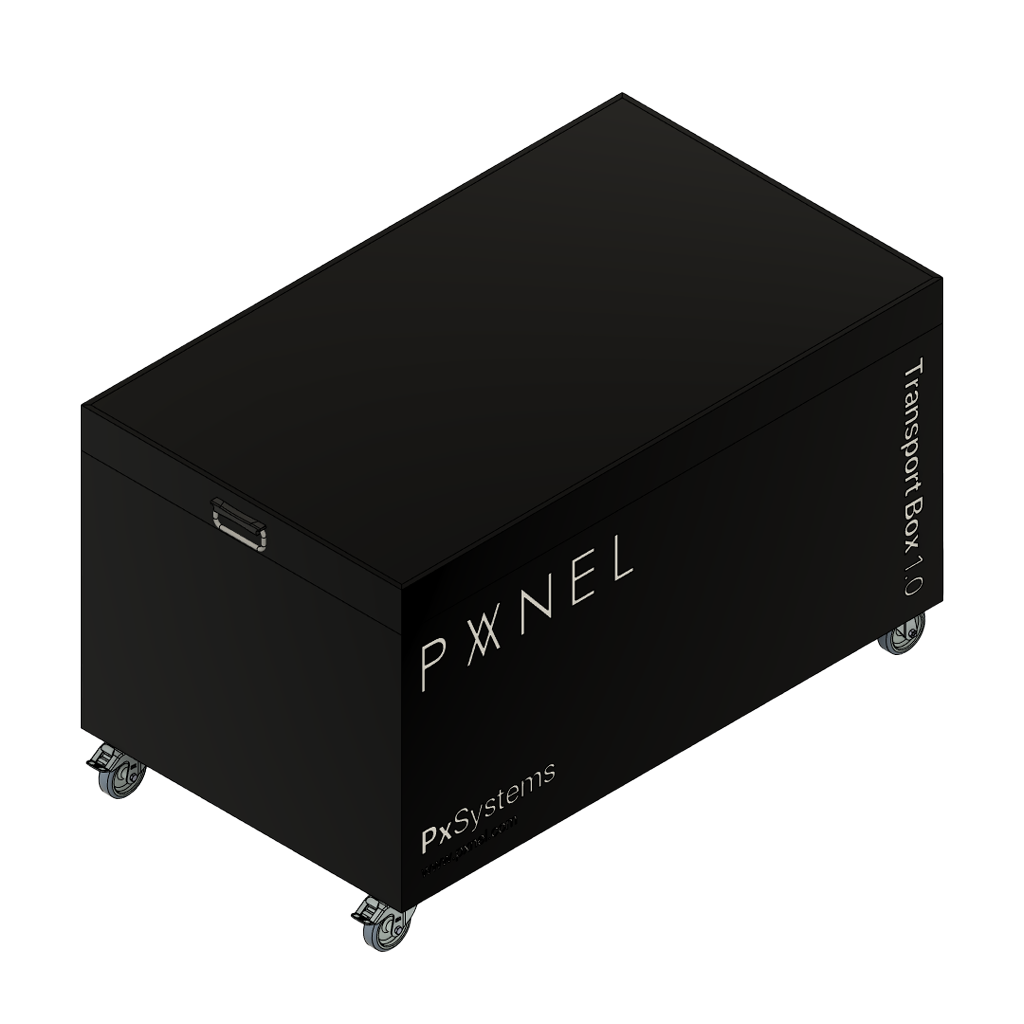

Single Decker
High quality transport case for PxBlock modules
Single Decker
High quality transport case for
PxBlock modules

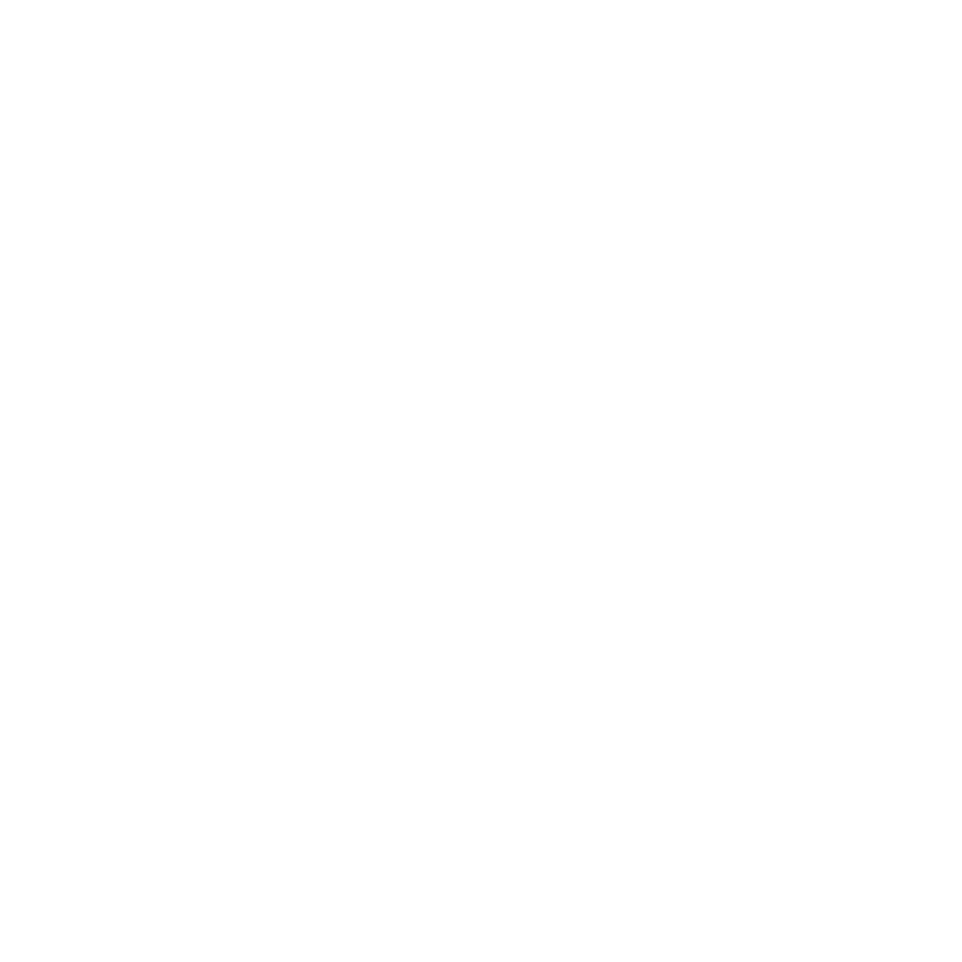

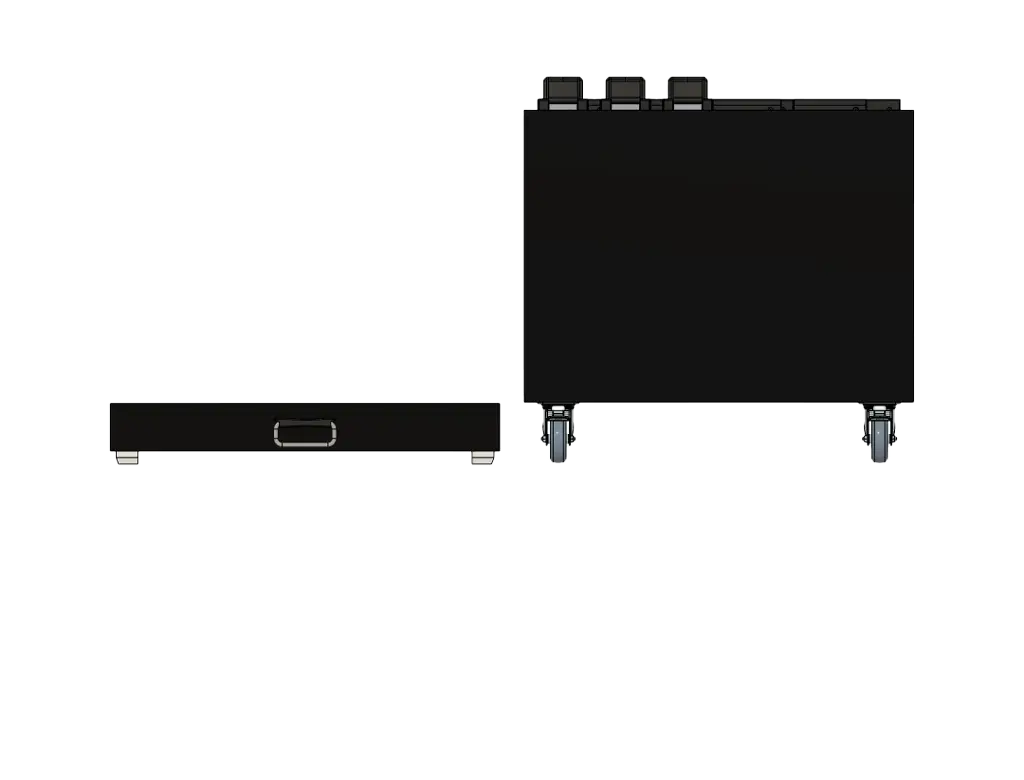

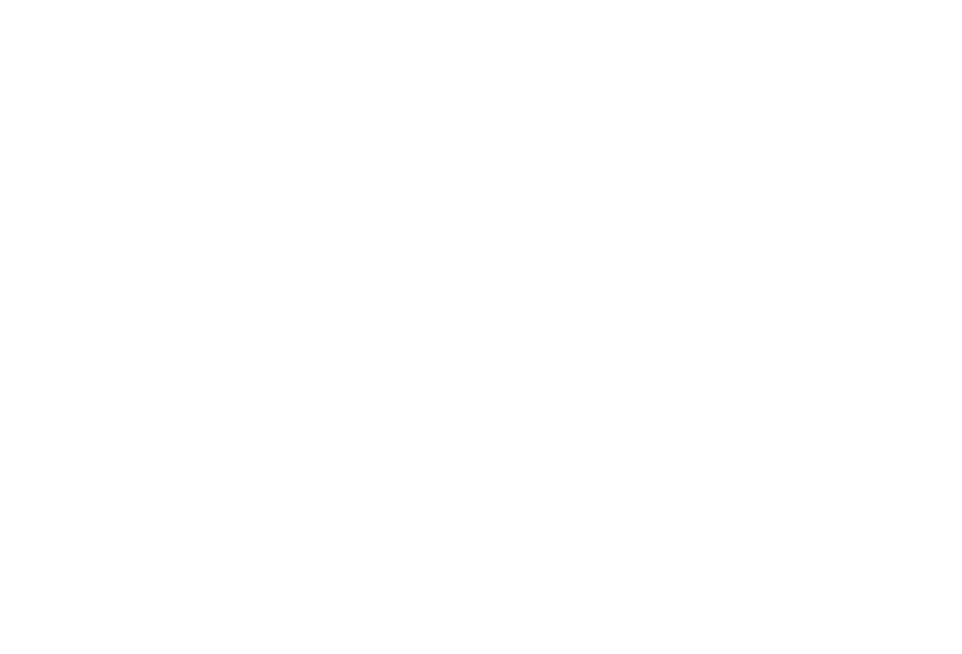

Side View

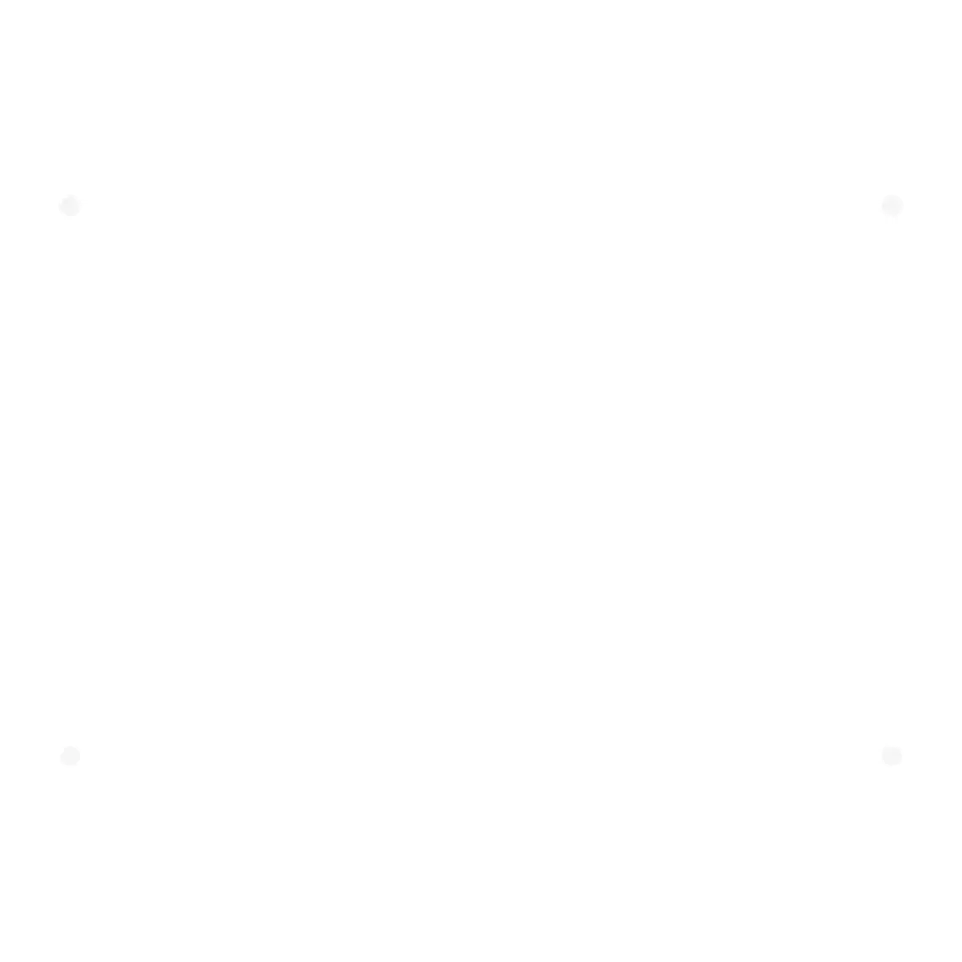

Top View

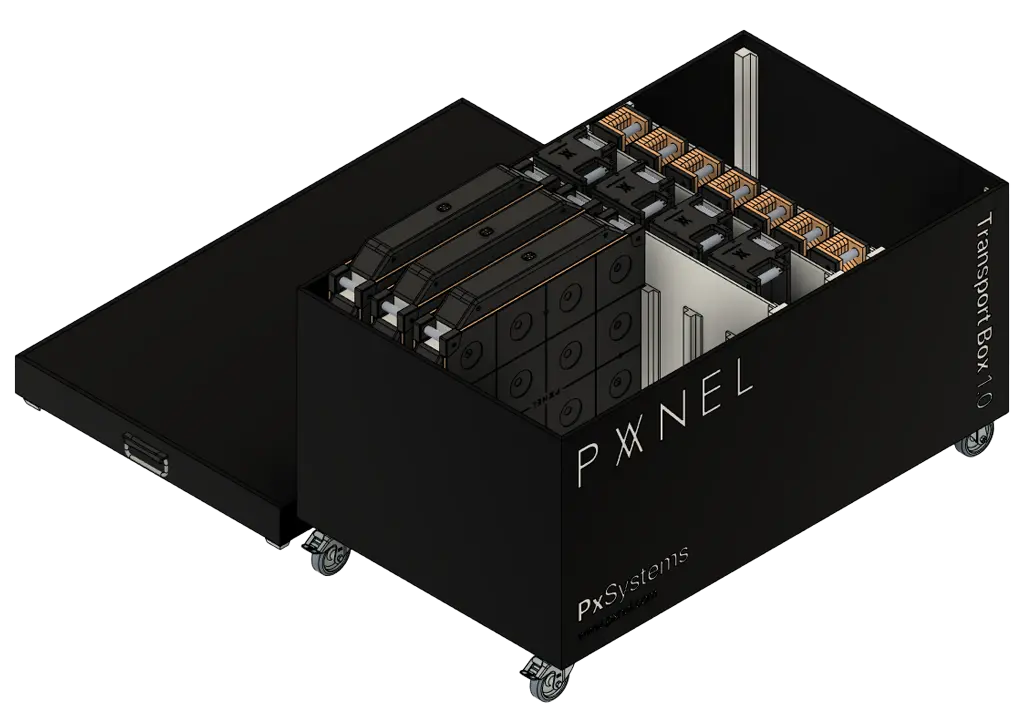

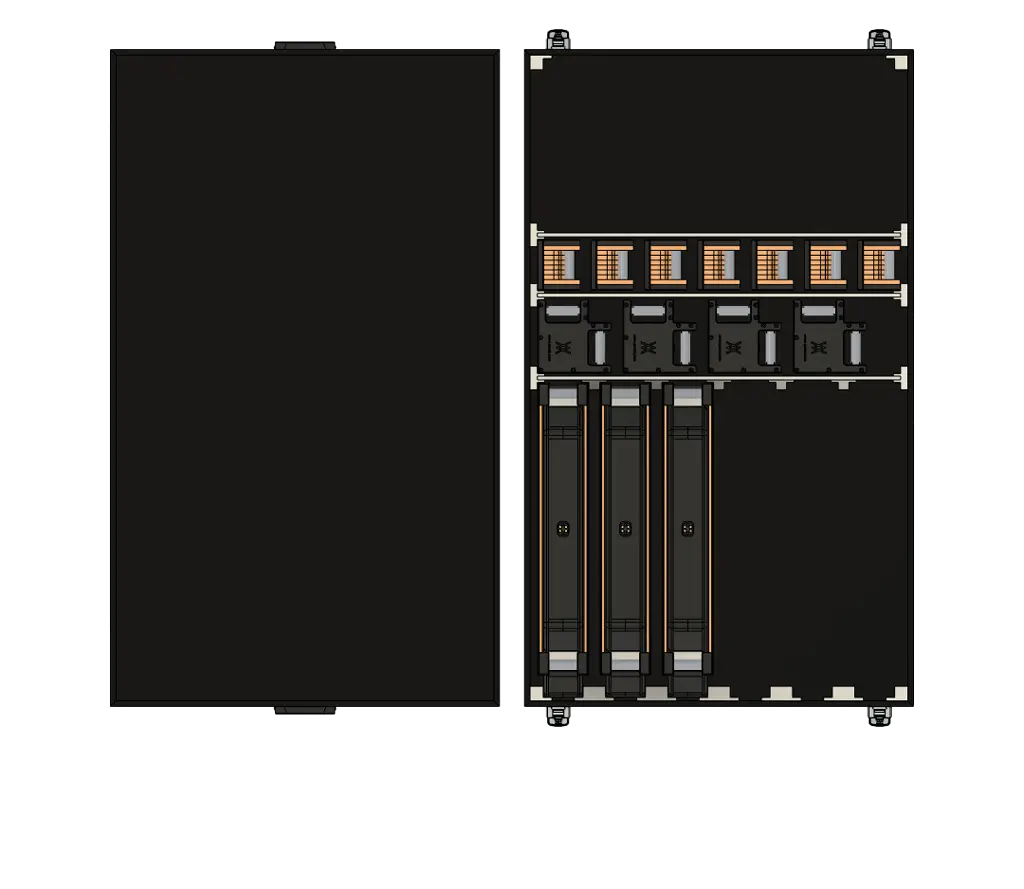

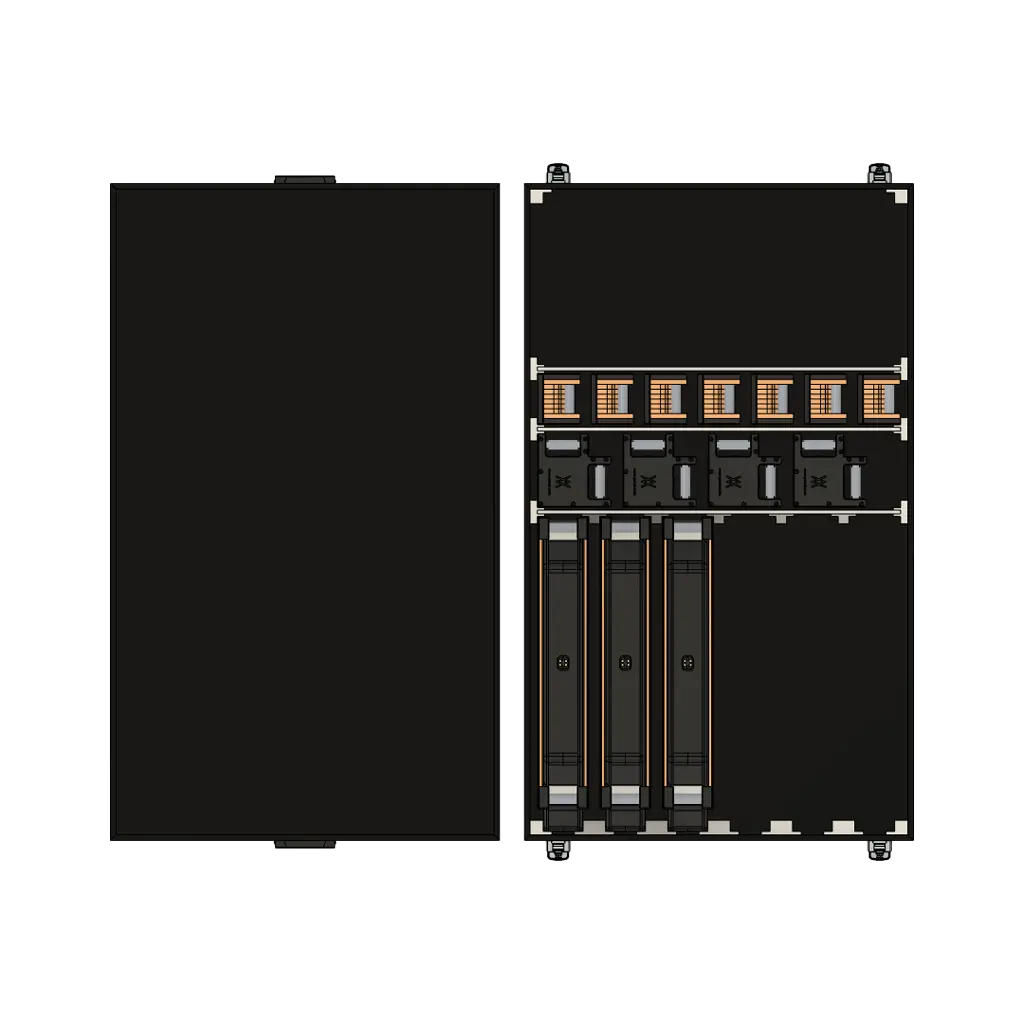

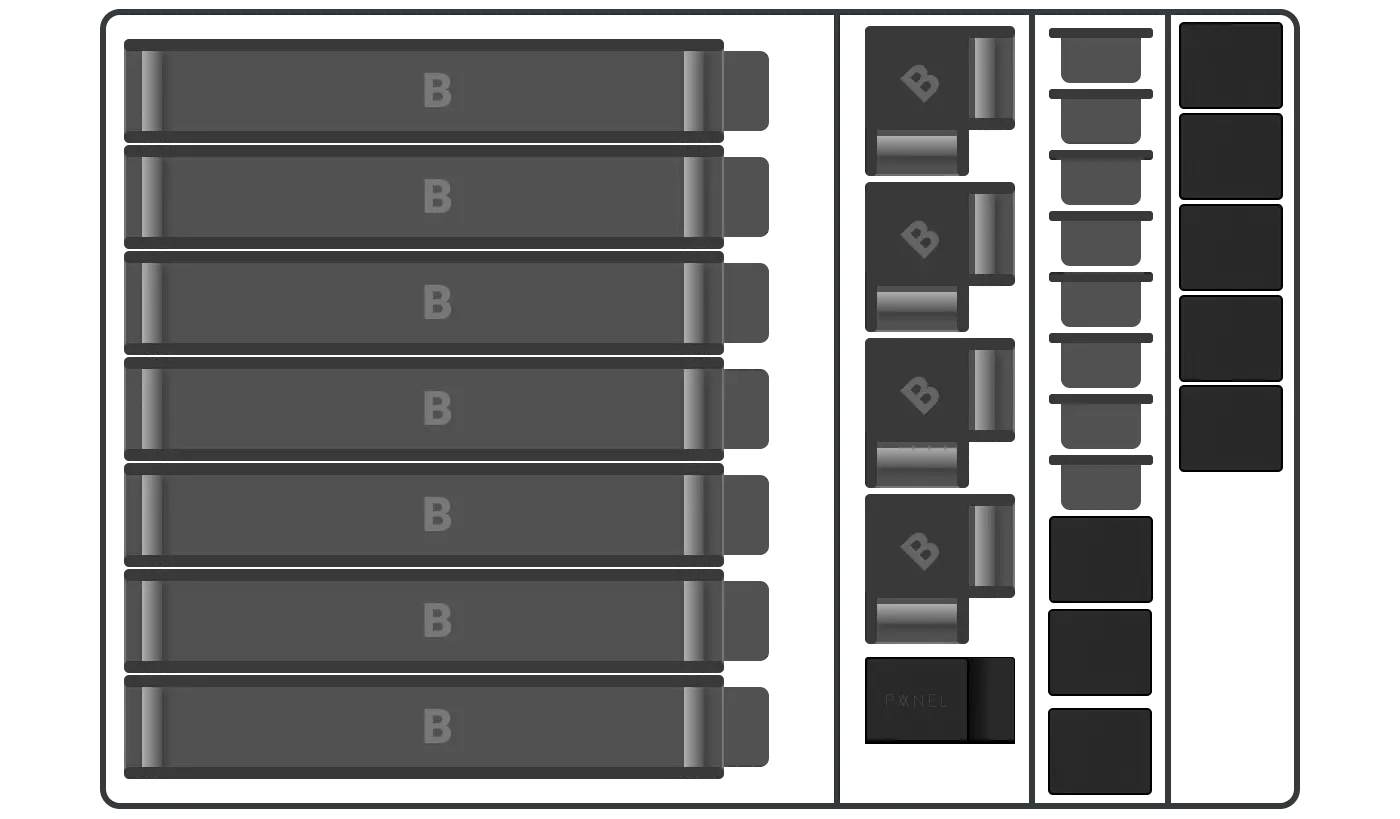

X-Ray View
Side View
Top View

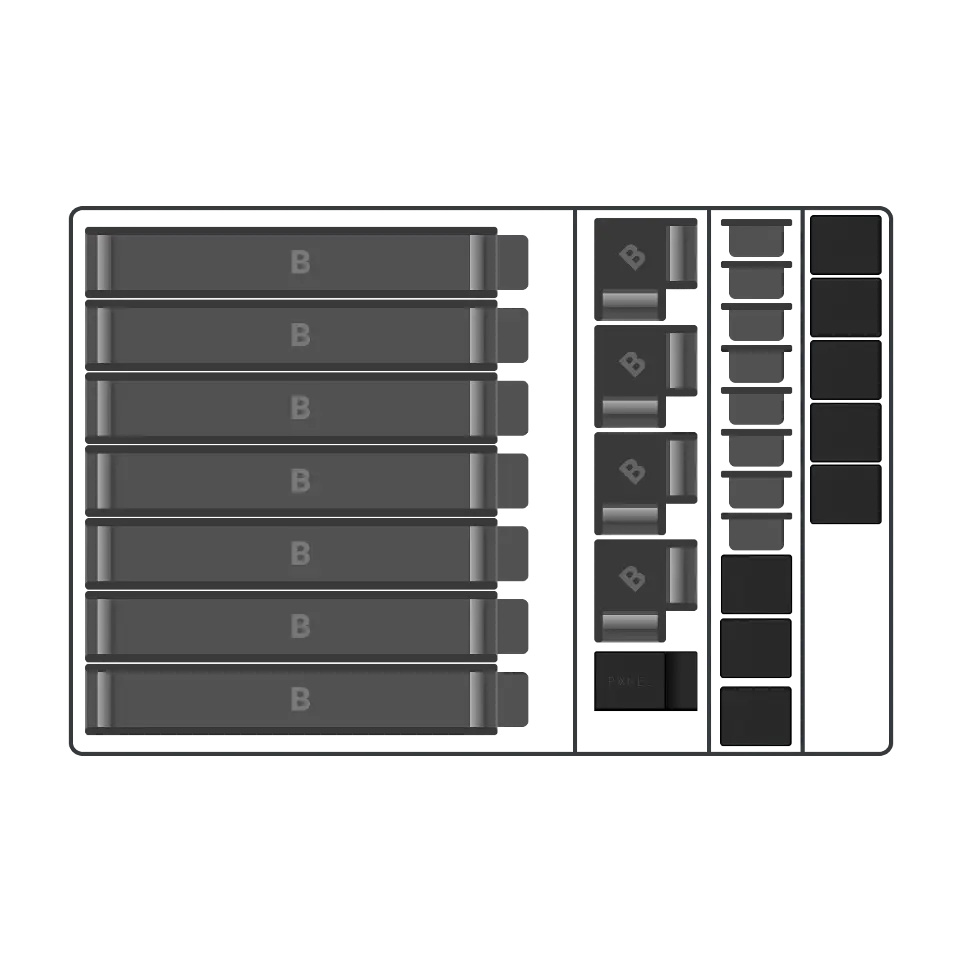

X-Ray View
120 x 80 cm (Length x Width)
75 cm (Height)
\
Technical Diagrams
Following the EURO PALLET dimension norms to optimize stacking, storage and transport.
Stacking
Dimensions

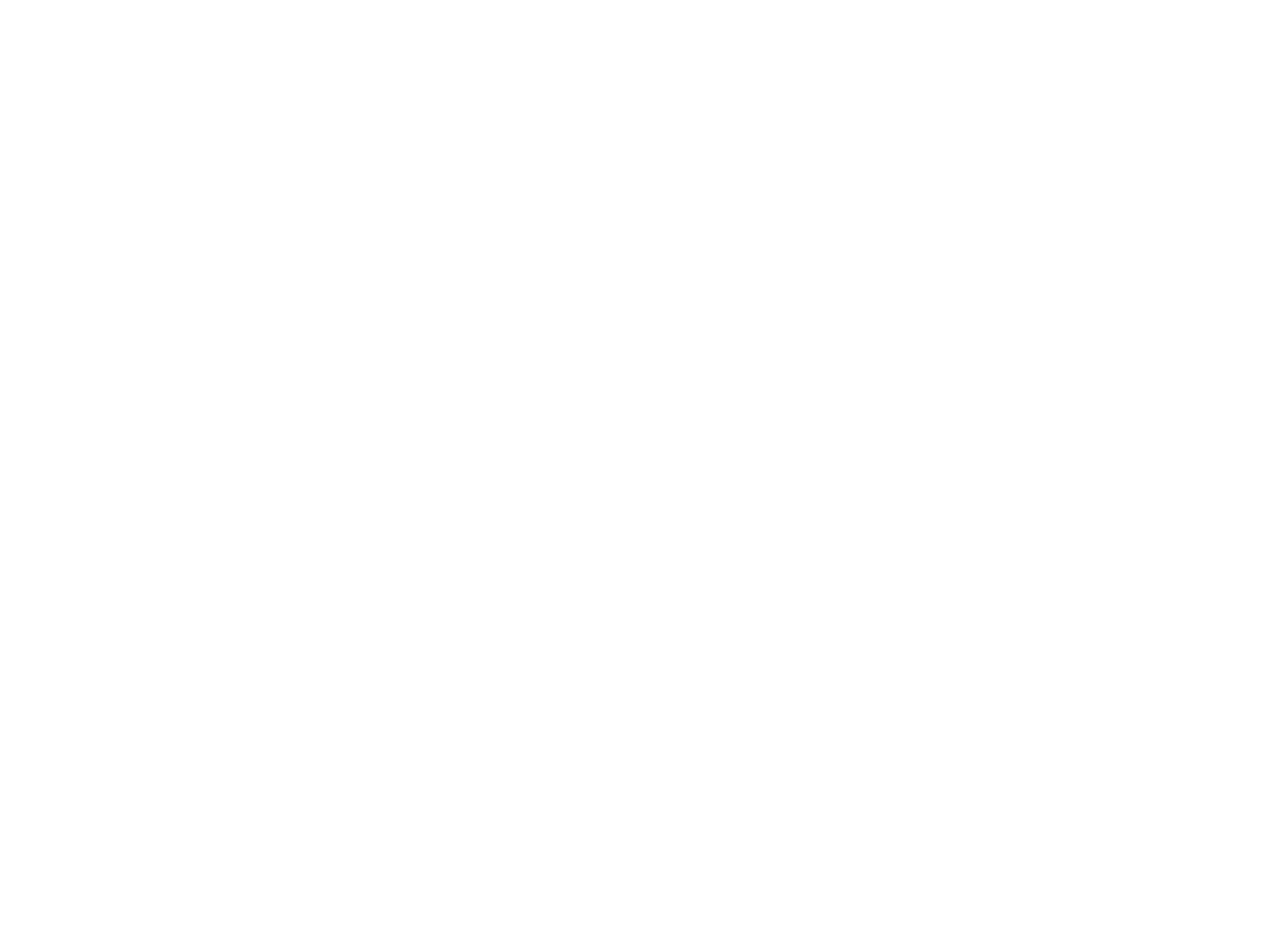

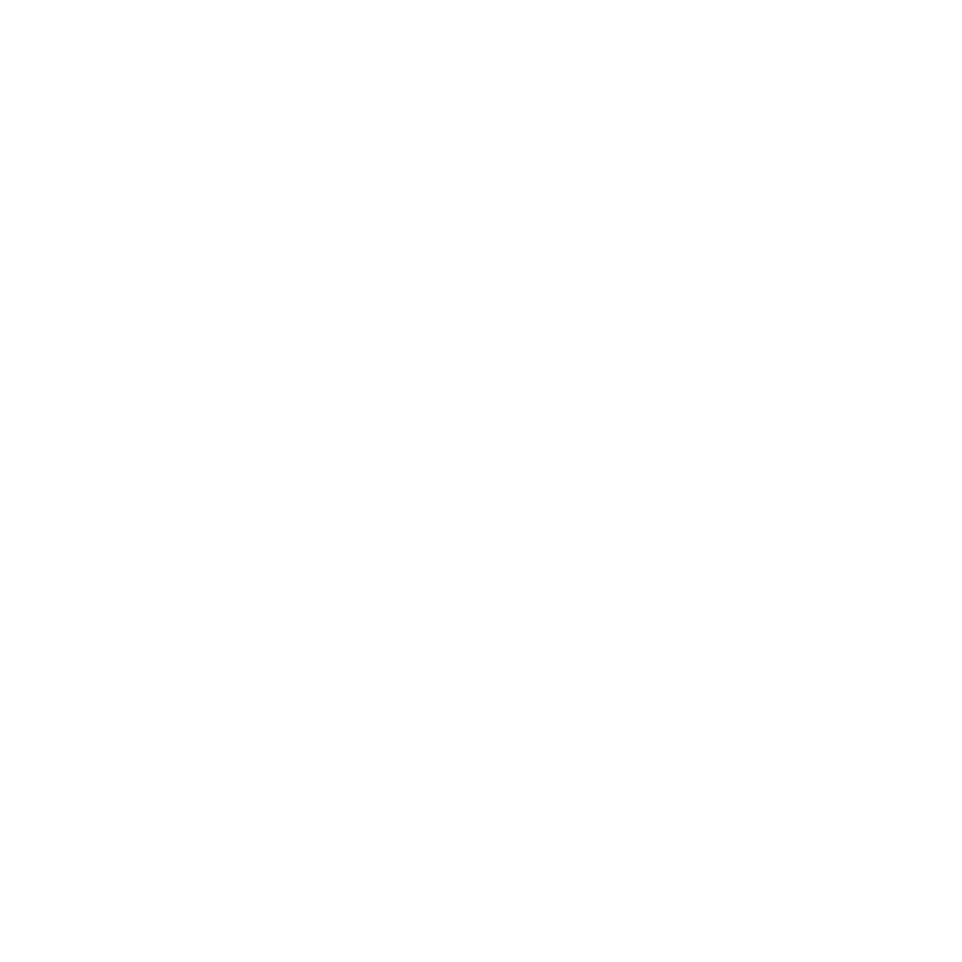

Side View Dimensions

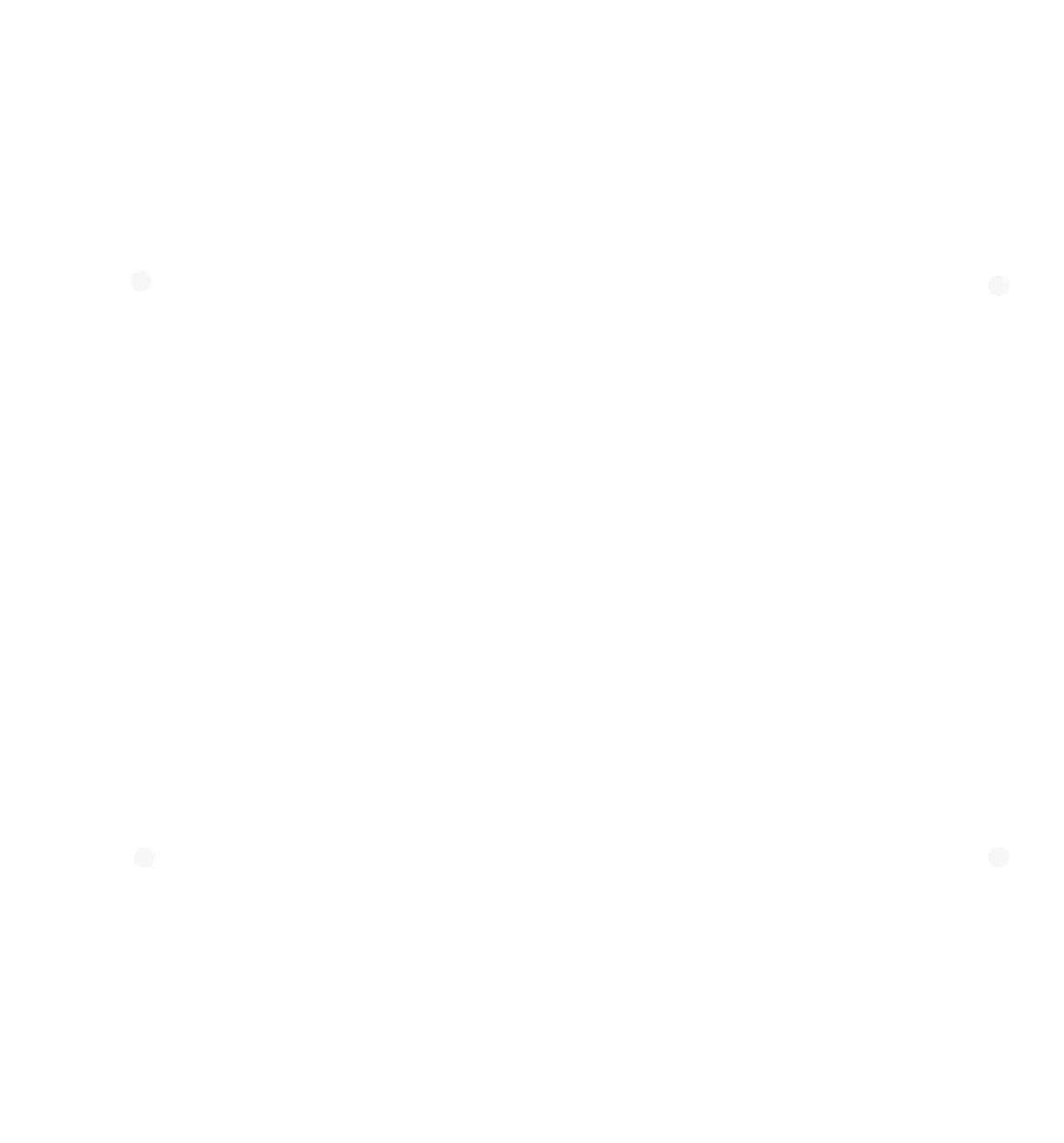

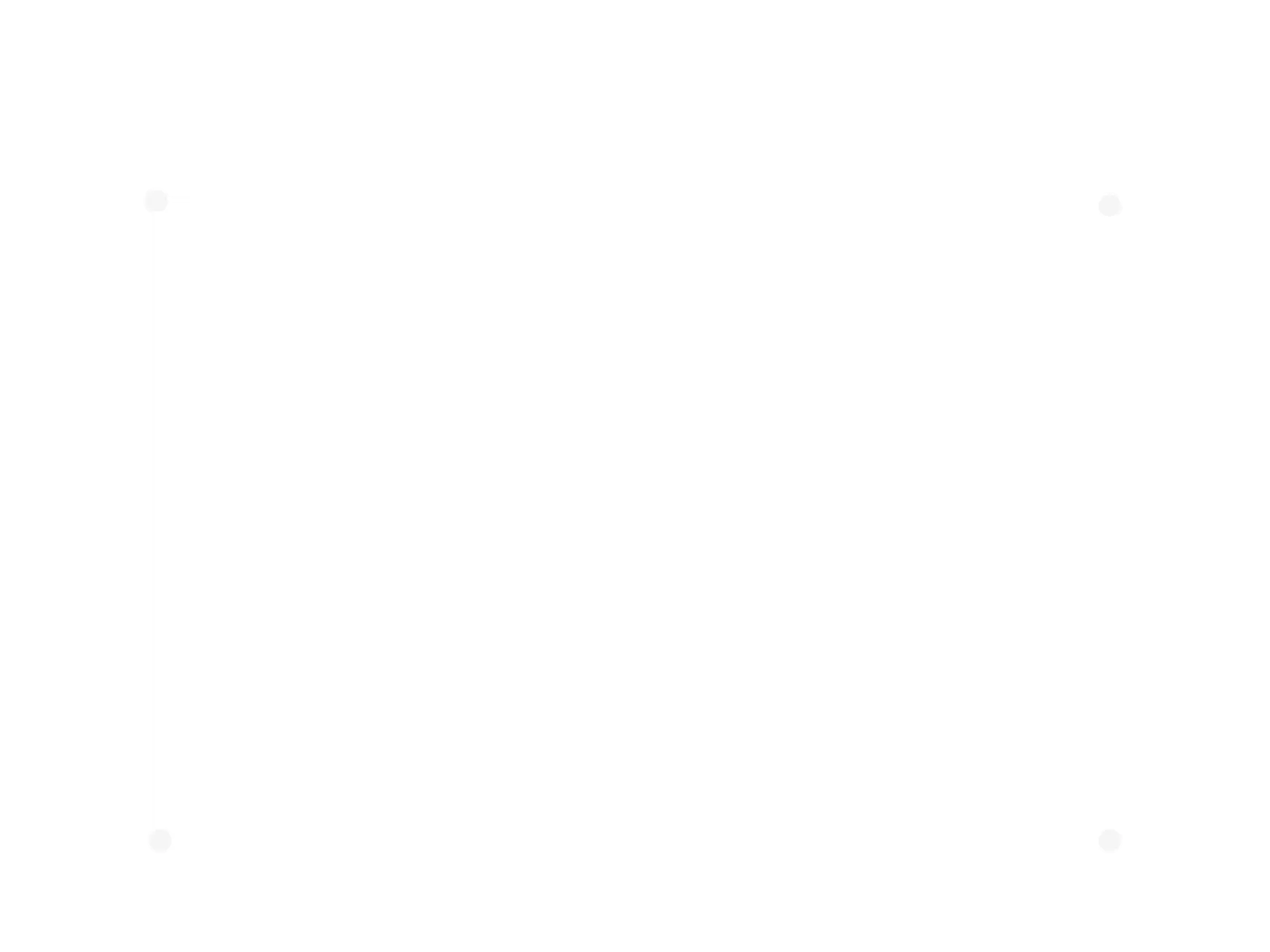

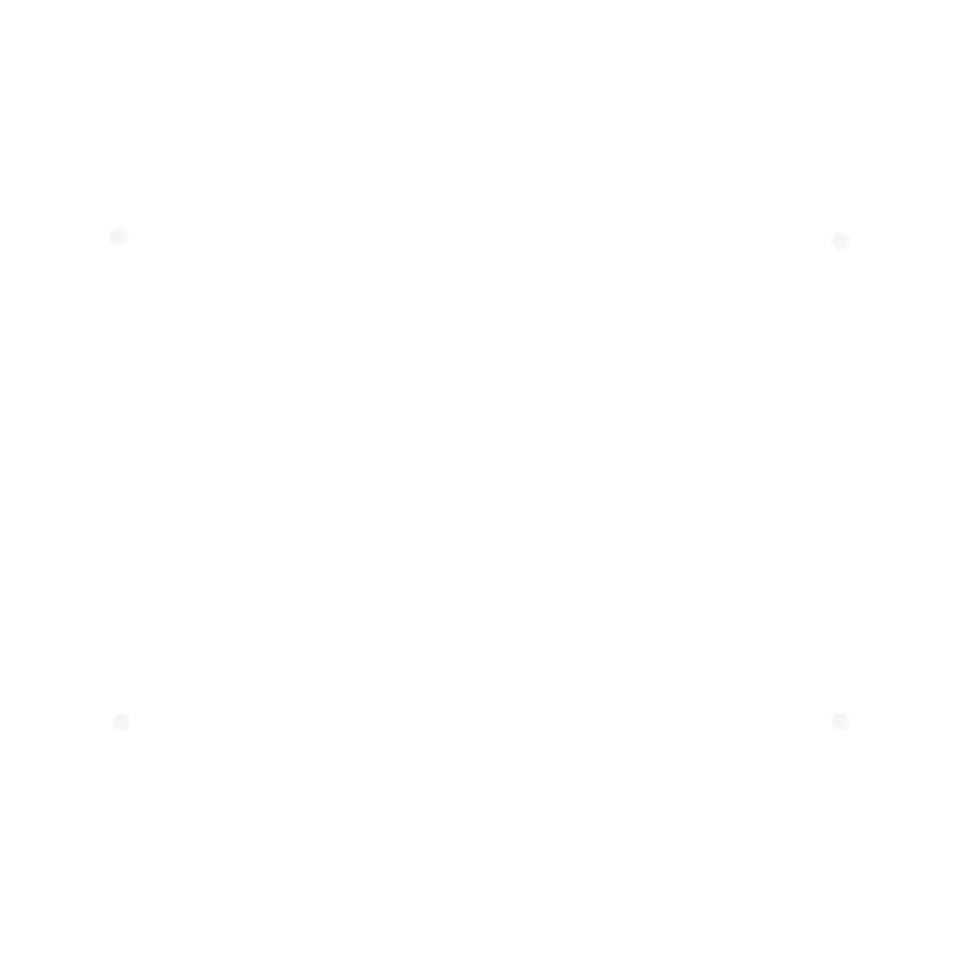

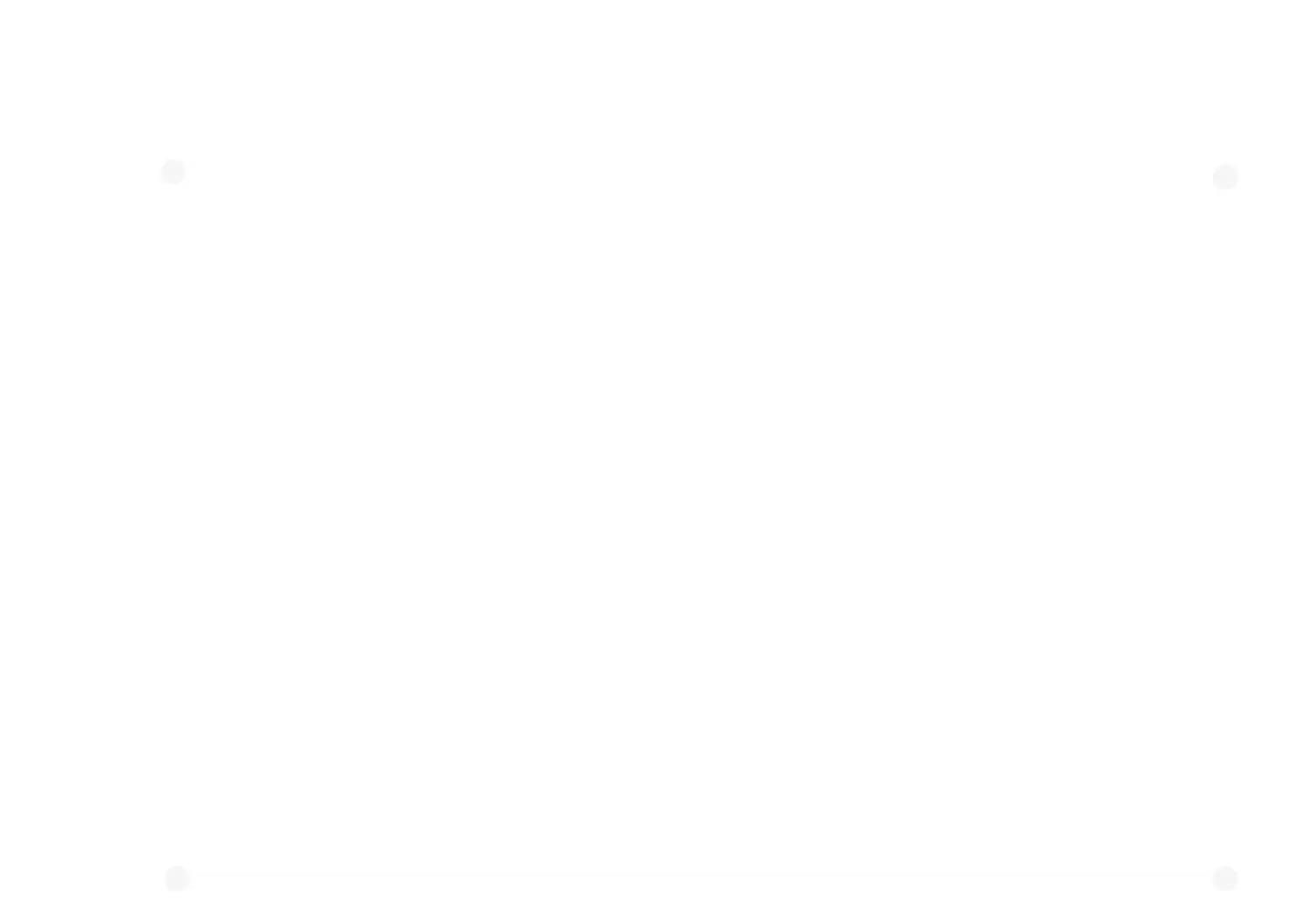

Top View Dimensions
Single Decker
120 x 80 cm (Length x Width)
75 cm (Height)
Dimensions
Side View Dimensions
Top View Dimensions
Product Info.
Compact, Efficient Transport Solution
The Single-Decker PxBox is the most compact transport box in the PxBox collection, designated as Version 01. Designed to meet euro pallet standards, it boasts a height of 75cm. This robust box features high-quality, smooth-rolling wheels, ensuring easy maneuverability, and is forklift-friendly for efficient handling. Additionally, the Single-Decker PxBox is stackable, optimizing storage space.
Primarily used for storing and transporting Px-Block modules such as blocks, joints, bases, and edges, this box is perfect for your modular needs. However, it is not suitable for storing or transporting panels.
Technical Product Details for Transport Case
Material:
- Body: 9mm birch plywood board
- Finish: Sturdy, high-quality, waterproof laminated surface
Dimensions:
- Exterior Dimensions: 80 x 120 x 75 cm
- Interior Dimensions: 68 x 115 x 68 cm
Hardware:
- Castor Wheels: 360, High-quality, lockable castor wheels
- Hinges: 90-degree stay-hinges for stationary lid-open state
- Locks: 2x butterfly locks for strong locking mechanism
- Edge Protection: High-quality aluminum edge profiles
- Corner Protection: Metallic ball corners for premium protection
Additional Features:
- Lid Pockets: Equipped with pockets on the top of the box lid for stackability
Design:
- Color/Finish Options: Matt black
- Weight Capacity: 150 KG
- Total Empty Weight: 30 KG
This list provides a comprehensive overview of the technical details for the transport case, covering all key aspects such as materials, dimensions, hardware, and additional features.
Product Info.
Compact, Efficient Transport Solution.
The Single-Decker PxBox is the most compact transport box in the PxBox collection, designated as Version 01. Designed to meet euro pallet standards, it boasts a height of 75cm.
This robust box features high-quality, smooth-rolling wheels, ensuring easy maneuverability, and is forklift-friendly for efficient handling. Additionally, the Single-Decker PxBox is stackable, optimizing storage space.
Primarily used for storing and transporting Px-Block modules such as blocks, joints, bases, and edges, this box is perfect for your modular needs. However, it is not suitable for storing or transporting panels.
Technical Details
for Transport Case
Material:
- Body: 9mm birch plywood board
- Finish: Sturdy, high-quality, waterproof laminated surface
Dimensions:
- Exterior Dimensions: 80 x 120 x 75 cm
- Interior Dimensions: 68 x 115 x 68 cm
Hardware:
- Castor Wheels: 360, High-quality, lockable castor wheels
- Hinges: 90-degree stay-hinges for stationary lid-open state
- Locks: 2x butterfly locks for strong locking mechanism
- Edge Protection: High-quality aluminum edge profiles
- Corner Protection: Metallic ball corners for premium protection
Additional Features:
- Lid Pockets: Equipped with pockets on the top of the box lid for stackability
Design:
- Color/Finish Options: Matt black
- Weight Capacity: 150 KG
- Total Empty Weight: 30 KG
This list provides a comprehensive overview of the technical details for the transport case, covering all key aspects such as materials, dimensions, hardware, and additional features.

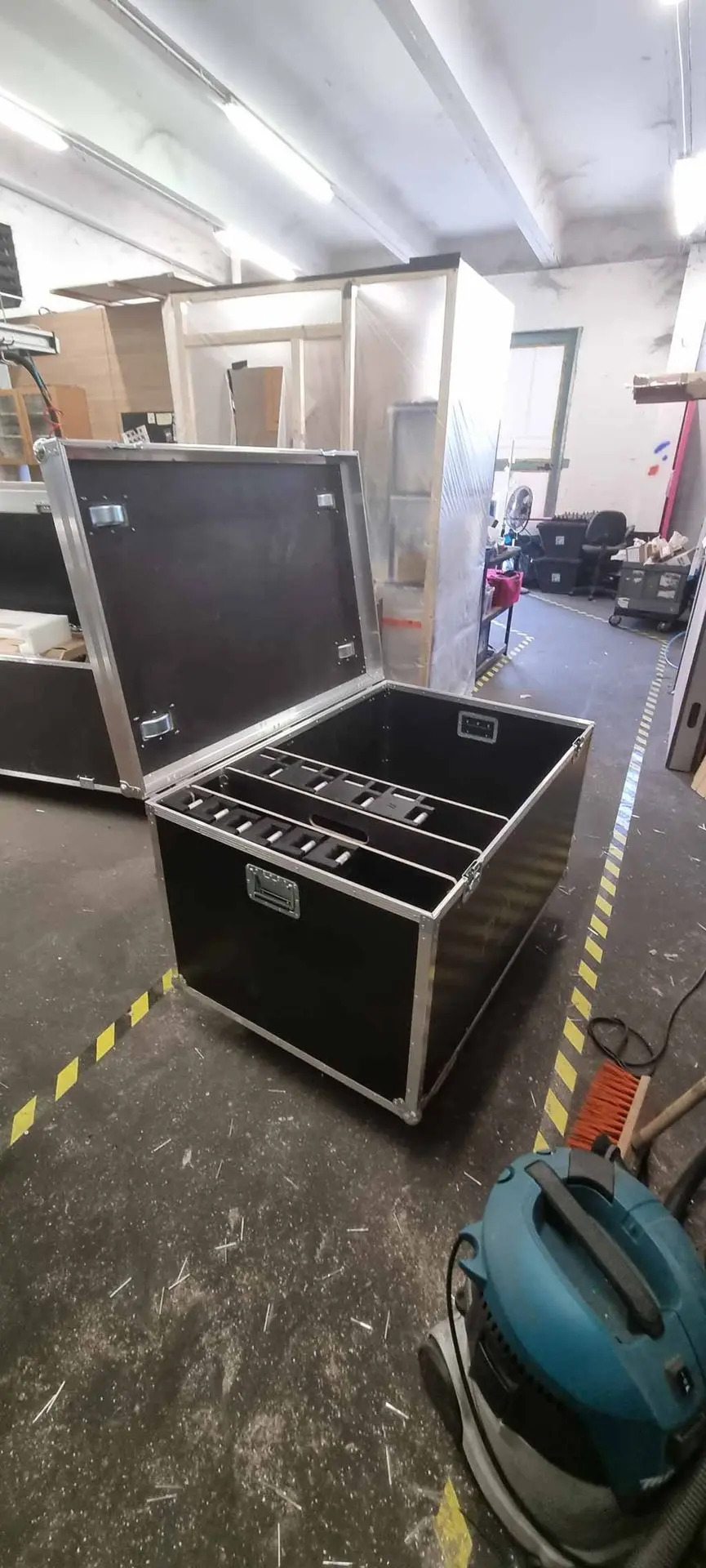

Single-Decker Gallery
Single-Decker Gallery
References
Getzner
London 2024
Architect At Work
Getzner
London 2024
Architect At Work

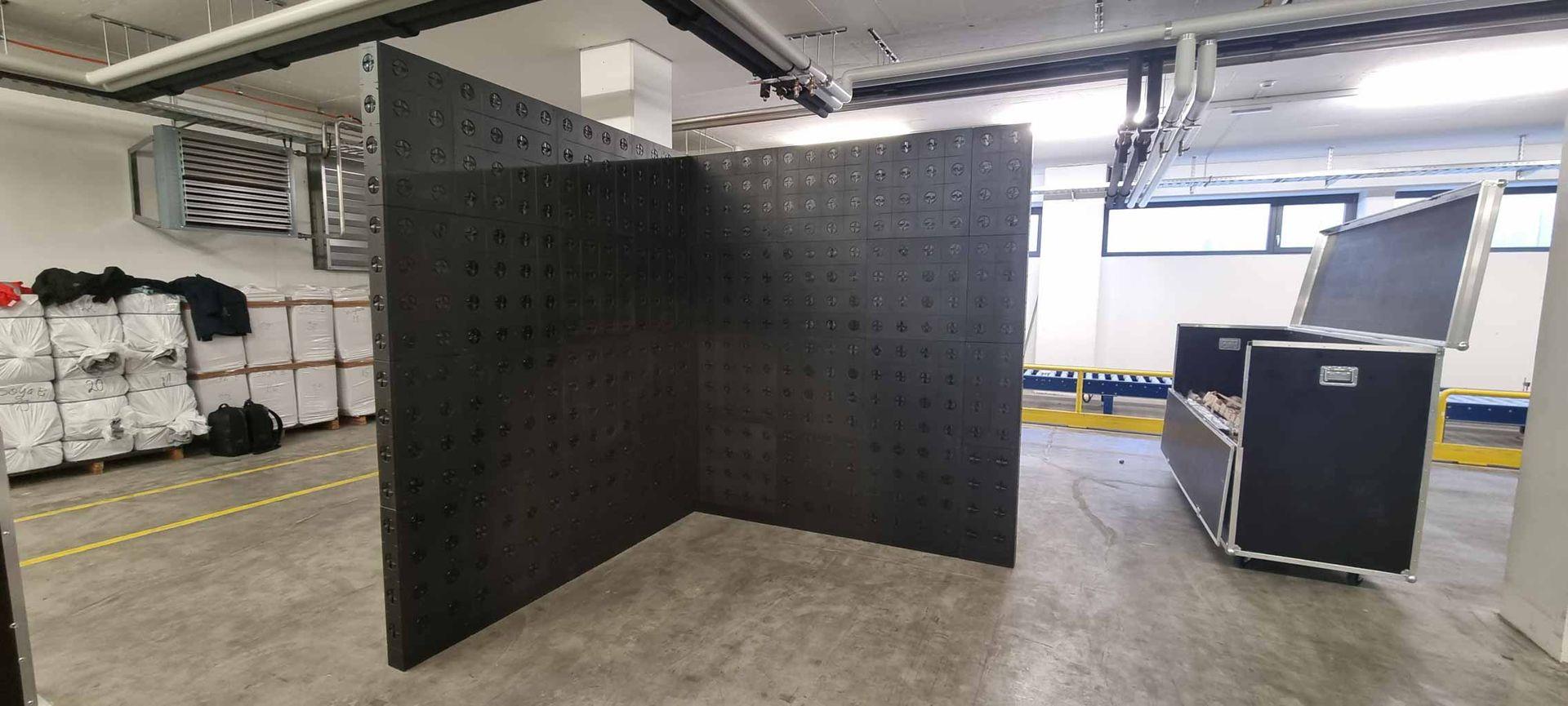

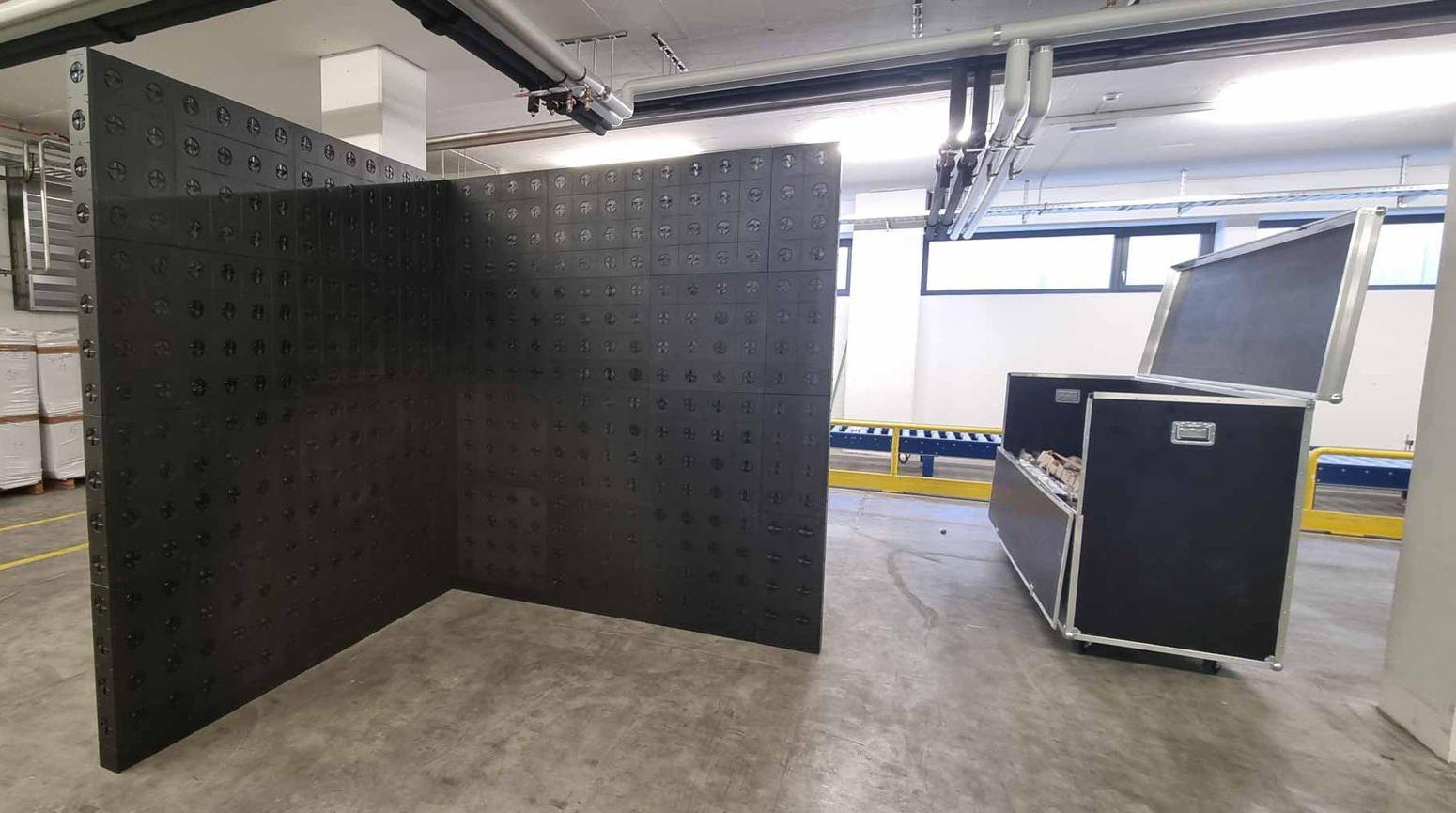

Textiles & Textures
